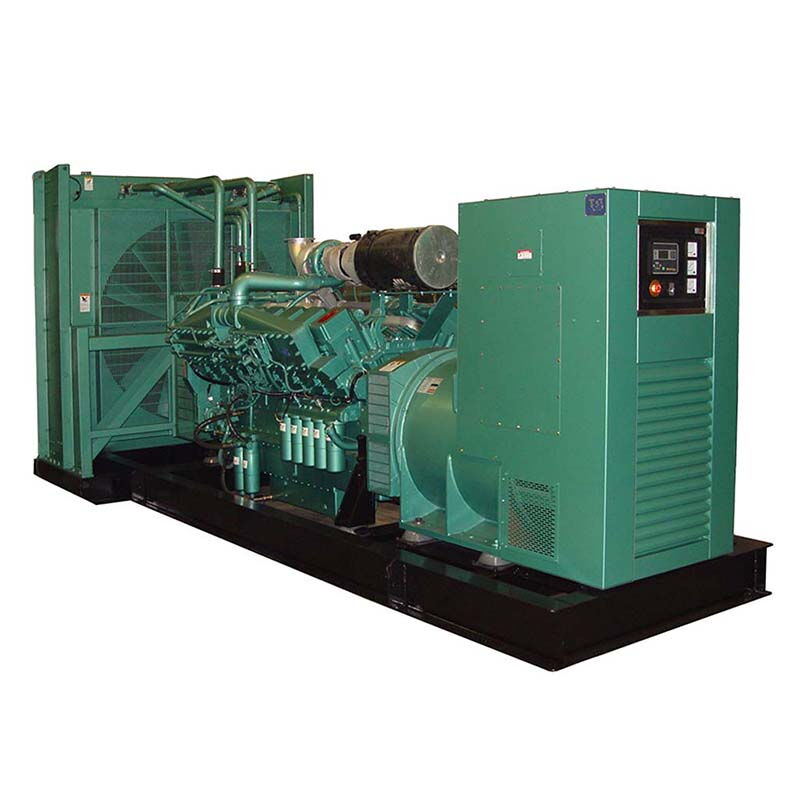

1287kW Diesel Generator, 50Hz, 16 Cylinder, Cummins KTA50-GS8
Key Specifications / Features
Model No.: GGS-240402-DGS-07
Hits: 14
Engineered for robust performance, this 3-phase diesel generator features a 50Hz Cummins KTA50-GS8 engine paired with a Stamford PI734C alternator, providing a prime power output of 1287kW. Ideal for demanding industrial applications, this generator ensures reliable power supply with its high-quality components and efficient design.
Request a quote
Tags
Detail Information
Product Name: 1287kW Diesel Generator
Model: GGS-1287-C
Frequency: 50Hz
Prime Power: 1287kW
Standby Power: 1415kW
Rated Voltage: 400V, 230V
Displacement: 50.3 L
Bore x Stroke: 159 x 159 mm
Compression Ratio: 15:1
Engine: Cummins KTA50-GS8, 4 Stroke, 16 Cylinder V Type
Alternator: Stamford PI734C, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Mechanical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-1287-C |
| Frequency | 50Hz |
| Prime Power | 1287kW |
| Standby Power | 1415kW |
| Rated Voltage | 400V, 230V |
| Dimension (L x W x H) (mm) | 4500 x 2200 x 2400 |
| Weight | 8500 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTA50-GS8 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged & Intercooled |
| Number of Cylinders | 16 Cylinder V Type |
| Cycle | 4 Stroke |
| Displacement | 50.3 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 15:1 |
| Rated Speed | 1500 RPM |
| Governor type | Mechanical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | PI734C |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
General Features of 1287kW Diesel Generator
Performance Testing: Each Cummins commercial generator undergoes rigorous performance testing, including evaluations at 50%, 70%, 100%, and 110% load capacities. This ensures that all control systems, alarms, and shutdown protections are fully functional and reliable.
Power Supply & Battery: Equipped with a battery charger and high-performance 24V maintenance-free lead-acid starting batteries, along with connecting cables for reliable starting and operation.
Corrosion Resistance: Constructed with stainless galvanized zinc plates to provide strong corrosion resistance and extend the lifespan of the generator.
Vibration Isolation: Features vibration isolators between the engine/alternator and the base frame to minimize noise and mechanical stress.
Exhaust System: Comes with an industrial silencer and a flexible exhaust hose to reduce noise and ensure efficient exhaust flow.
Compliance: Designed to meet ISO 8528 and GB 2820 standards, ensuring high performance and reliability in various applications.
Engine & Alternator: Powered by a Cummins engine and paired with a Stamford alternator for dependable and efficient power generation.
Optional Components: Available with additional features such as a water jacket preheater, oil heater, and double air cleaner for enhanced performance and protection.
This generator is engineered to deliver reliable performance and durability, suitable for a wide range of commercial and industrial applications.
