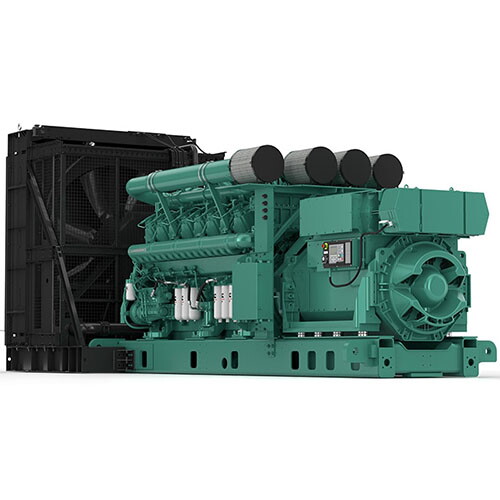

1100kW Diesel Generator, Cummins KTA50-G8, 50Hz, 16 Cylinder
Key Specifications / Features
Model No.: GGS-240401-DGS-02
Hits: 21
Presenting a robust and high-capacity diesel generator with a prime power output of 1100kW and 1375kVA, driven by the formidable Cummins KTA50-G8 Engine. With its 16-cylinder Vee configuration and reliable Stamford PI734B Alternator, this generator ensures steady and efficient power supply for a wide range of applications. Operating at a frequency of 50Hz, this generator is equipped to meet the most demanding power needs with its water-cooled system and 4-stroke engine design.
Request a quote
Tags
Detail Information
Product Name: 1100kW Diesel Generator
Model: GGS-1375-C
Frequency: 50Hz
Prime Power: 1100kW, 1375kVA
Standby Power: 1210kW, 1513kVA
Rated Voltage: 230V, 400V
Displacement: 50.3 L
Bore x Stroke: 159 x 159 mm
Compression Ratio: 14.9:1
Engine: Cummins KTA50-G8, 4 Stroke, 16 Cylinder, V Type
Alternator: Stamford PI734B, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-1375-C |
| Frequency | 50Hz |
| Prime Power | 1100kW/1375kVA |
| Standby Power | 1210kW/1513kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 5400 x 2120 x 2600 |
| Gross Weight (KG) | 10500 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTA50-G8 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged and Aftercooled |
| Number of Cylinders | 16 Cylinder, V Type |
| Cycle | 4 Stroke |
| Displacement | 50.3 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 14.9:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | PI734B |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
