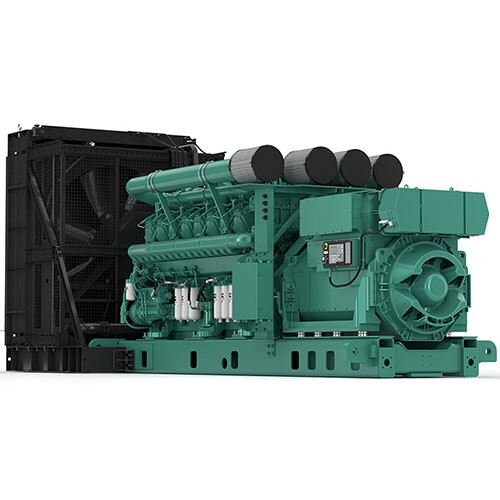

1250kVA Diesel Generator, Cummins KTA50-G3, Stamford LVI634G
Key Specifications / Features
Model no.: GGS-240401-DGS-03
hits: 1
Introducing a robust 4-stroke diesel generator powered by the Cummins KTA50-G3 Engine, boasting a prime power output of 1000kW and 1250kVA. Coupled with the reliable Stamford LVI634G Alternator, this generator ensures consistent and efficient power generation for various applications, catering to demanding power requirements with its formidable engine and alternator combination.
Request a quote
Tags
Detail Information
Product Name: 1250kVA Diesel Generator
Model: GGS-1250-C
Frequency: 50Hz
Prime Power: 1000kW, 1250kVA
Standby Power: 1100kW, 1375kVA
Rated Voltage: 230V, 400V
Displacement: 50.3 L
Bore x Stroke: 159 x 159 mm
Compression Ratio: 13.9:1
Engine: Cummins KTA50-G3, 4 Stroke, 16 Cylinder, V Type
Alternator: Stamford LVI634G, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-1250-C |
| Frequency | 50Hz |
| Prime Power | 1000kW/1250kVA |
| Standby Power | 1100kW/1375kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 4830 x 2060 x 2500 |
| Gross Weight (KG) | 9700 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTA50-G3 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged and Aftercooled |
| Number of Cylinders | 16 Cylinder, V Type |
| Cycle | 4 Stroke |
| Displacement | 50.3 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 13.9:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | LVI634G |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
