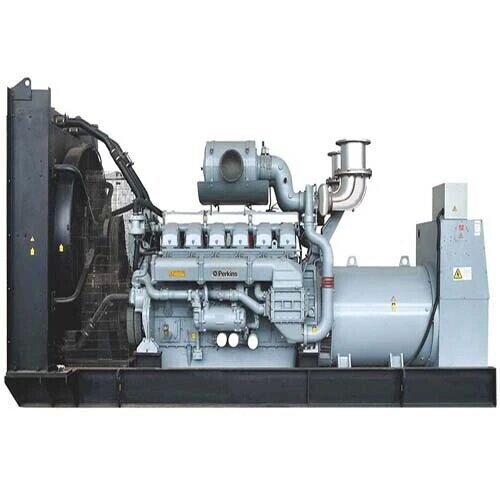

1000kW Diesel Generator, Perkins 4012-46TWG2A, 12 Cylinder

Key Specifications / Features

Model No.: GGS-240407-DGS-02
Hits: 4
Introducing our 4-stroke diesel generator, engineered for 50Hz operation and boasting a prime power output of 1000 kW and 1250 kVA. Powered by the robust Perkins 4012-46TWG2A engine and paired with the dependable Stamford LVI634G alternator, this generator stands as a testament to superior performance and reliability, making it an excellent choice for a wide range of applications where consistent power supply is crucial.
Request a quote

Detail Information


Product Name: 1000kW Diesel Generator
Model: GGS-1250-P
Frequency: 50Hz
Prime Power: 1000kW, 1250kVA
Standby Power: 1100kW, 1375kVA
Rated Voltage: 230V, 400V
Displacement: 45.842 L
Bore x Stroke: 160 x 190 mm
Compression Ratio: 13:1
Engine: Perkins 4012-46TWG2A, 4 Stroke, 12 Cylinder, V Type
Alternator: Stamford LVI634G
Other Feature: 3 Phase, Water Cooled, Electronic Governor

Technical Data

Generator Specification
Generator Model GGS-1250-P
Frequency 50Hz
Prime Power 1000kW/1250kVA
Standby Power 1100kW/1375kVA
Rated Voltage 230V, 400V
Dimension (L x W x H) (mm) 5100 x 2100 x 2400
Gross Weight (KG) 10800
Engine Specification
Engine Brand Perkins
Engine Model 4012-46TWG2A
Cooling System Water Cooled
Aspiration Turbocharged
Number of Cylinders 12 Cylinder, V Type
Cycle 4 Stroke
Displacement 45.842 L
Bore x Stroke 160 x 190 mm
Compression Ratio 13:1
Rated Speed 1500 RPM
Governor type Electronic
Alternator Specification
Alternator Brand Stamford
Alternator Model LVI634G
Excitation system Brushless, Self-excited
Number of phase 3 Phase
Power Factor 0.8
Protection Grade IP23
Insulation Class H
