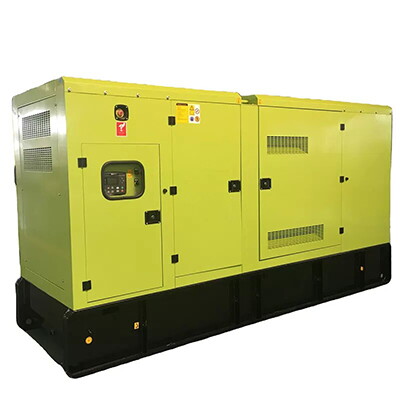

Water Cooled Diesel Generator, 9kW 11kVA, 60Hz, Perkins Engine
Key Specifications / Features
Model No.: GGS-240311-DGS-02
Hits: 16
Presenting the Water Cooled Diesel Generator, featuring a robust Perkins engine tailored for reliability. Operating at 60Hz, it delivers a solid 9kW power output and a rating of 11kVA. With a rated voltage of 220/127V, this generator offers versatility for various applications. Its 3-phase and 4-wire configuration ensures compatibility with diverse electrical systems. Equipped with a brushless self-excited alternator, it guarantees efficient power generation and hassle-free operation. Trust in this generator to provide consistent and dependable power for your needs.
Request a quote
Tags
Detail Information
Product Name: Water Cooled Diesel Generator
Model: GGS-11-P
Engine Brand: Perkins
Frequency: 60Hz
Prime Power: 9kW / 11kVA
Rated Voltage: 220/127V
Rated Current: 29.5A
Engine Type: Water Cooled, 3 Cylinder, 4 Stroke
Alternator Type: Brushless, Self-Excited, 3 Phase & 4 Wire
Net Weight: 670 KG
Dimension (L x W x H): 1900 x 860 x 1020 mm
Technical Data
| Generator Specification | |
| Generator Model | GGS-11-P |
| Frequency | 60Hz |
| Prime Power | 9kW/11kVA |
| Standby Power | 10kW/13kVA |
| Rated Voltage | 220/127V |
| Rated Current | 29.5A |
| Type | Silent |
| Dimension (L x W x H) (mm) | 1900 x 860 x 1020 |
| Net Weight (KG) | 670 |
| Engine Specification | |
| Engine Brand | Perkins |
| Model | 403D-11G |
| Cooling System | Water Cooled |
| Aspiration | Natural Aspiration |
| Fuel System | Direct Inject |
| Number of Cylinders | 3 Cylinder In Line |
| Cycle | 4 Stroke |
| Starting Method | Electric Start |
| Displacement | 1.131 L |
| Bore x Stroke | 77 x 81 mm |
| Compression Ratio | 23:1 |
| Rated Speed | 1800rpm |
| Rated Power (With Fan) | 10.7kW |
| Governor Type | Mechanical |
| Alternator Specification | |
| Alternator Brand | Stamford PI044E |
| Exciter Type | Brushless, Self-Excitation |
| Phase | 3 |
| Voltage | 220/127V |
| Wiring Type | 3 Phase & 4 Wire, Y Type |
| Power Factor | 0.8 |
| Prime Power | 9.4 kW |
| Protection Grade | IP23 |
| Insulation Grade | Class H |
