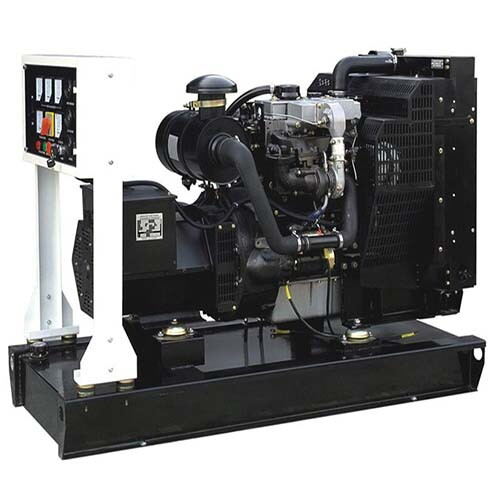

76kVA Diesel Generator, Perkins 1104A-44TG1, Stamford UCI224F
Key Specifications / Features
Model No.: GGS-240328-DGS-03
Hits: 12
Our robust diesel generator, featuring a Perkins 1104A-44TG1 engine, delivers a prime power output of 61kW and 76kVA. With a 4-cylinder, 4-stroke configuration and a Stamford UCI224F alternator, it ensures reliable performance for your power needs, complemented by brushless, self-excited operation and an electronic governor system.
Request a quote
Tags
Detail Information
Product Name: 76kVA Diesel Generator
Model: GGS-76-P
Frequency: 60Hz
Prime Power: 61kW, 76kVA
Standby Power: 67kW, 84kVA
Rated Voltage: 127V, 220V
Displacement: 4.4 L
Bore x Stroke: 105 x 127 mm
Compression Ratio: 17.25:1
Engine: Perkins 1104A-44TG1, 4 Stroke, 4 Cylinder in Line
Alternator: Stamford UCI224F, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-76-P |
| Frequency | 60Hz |
| Prime Power | 61kW/76kVA |
| Standby Power | 67kW/84kVA |
| Rated Voltage | 127/220V |
| Dimension (L x W x H) (mm) | 1720 x 750 x 1230 |
| Gross Weight (KG) | 1020 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 1104A-44TG1 |
| Cooling System | Water Cooled |
| Aspiration | Turbo charged, with air to air charge cooling |
| Number of Cylinders | 4 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 4.4 L |
| Bore x Stroke | 105 x 127 mm |
| Compression Ratio | 17.25:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI224F |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
