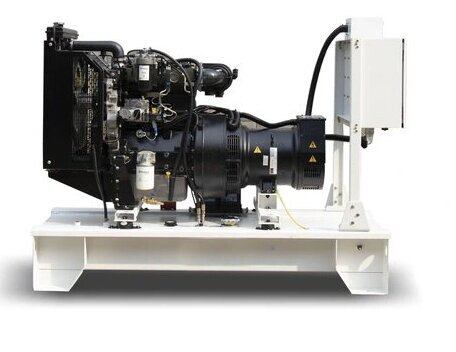

36kW 45kVA Diesel Generator, Perkins Engine, 50Hz, 3 Cylinder
Key Specifications / Features
Model no.: GGS-240312-DGS-02
Hits: 1
Introducing the 36kW Diesel Generator, engineered for prime power applications. With a prime power output of 36kW (45kVA), this generator offers robust performance. Powered by a reliable Perkins engine and operating at 50Hz, it ensures steady power supply. Featuring water cooling and a durable 3-cylinder, 4-stroke engine, it's built for longevity and efficiency. With a 3-phase, 4-wire setup and a voltage rating of 400/230V, it's suitable for diverse electrical systems. Trust in this generator for consistent and dependable power generation.
Request a quote
Tags
Detail Information
Product Name: 36kW 45kVA Diesel Generator
Model: GGS-45-P
Engine Brand: Perkins
Frequency: 50Hz
Prime Power: 36kW, 45kVA
Rated Voltage: 400/230V
Engine Type: Water Cooled, 3 Cylinder, 4 Stroke
Alternator Type: Brushless, Self-Excited, 3 Phase & 4 Wire
Dimension (L x W x H): 1950 x 850 x 1370 mm
Technical Data
| Generator Specification | |
| Generator Model | GGS-45-P |
| Frequency | 50Hz |
| Prime Power | 36kW/45kVA |
| Standby Power | 40kW/50kVA |
| Standard Voltage | 400/230V |
| Available Voltage | 380/220V, 415/240V |
| Dimension (L x W x H) (mm) | 1950 x 850 x 1370 |
| Engine Specification | |
| Engine Brand | Perkins |
| Model | 1103A-33TG1 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Injection Type | Direct |
| Number of Cylinders | 3 Cylinder in Line |
| Cycle | 4 Stroke |
| Starting Method | Electric Start |
| Displacement | 3.3 L |
| Bore x Stroke | 105 x 127 mm |
| Rated Speed | 1500rpm |
| Governor Type | Mechanical |
| Alternator Specification | |
| Exciter Type | Brushless, Self-excited |
| Wiring Type | 3 Phase & 4 Wire |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Grade | Class H |
