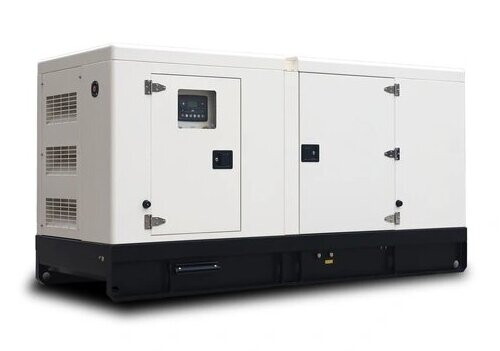

24kW 30kVA Diesel Generator, Cummins Engine, 50Hz, Water Cooled
Key Specifications / Features
Model no.: GGS-240312-DGS-01
Hits: 1
Introducing the 24kW Diesel Generator, powered by a dependable Cummins engine. Operating at 50Hz, it delivers a prime power output of 24kW (30kVA). With water cooling and a durable 4-cylinder, 4-stroke engine, it ensures longevity and efficiency. Equipped with a brushless alternator and featuring a 3-phase, 4-wire setup with a voltage of 400/230V, it guarantees reliable power generation for various applications.
Request a quote
Tags
Detail Information
Product Name: 24kW 30kVA Diesel Generator
Model: GGS-30-C
Engine Brand: Cummins
Frequency: 50Hz
Prime Power: 24kW, 30kVA
Rated Voltage: 400/230V
Engine Type: Water Cooled, 4 Cylinder, 4 Stroke
Alternator Type: Brushless, Self-Excited, 3 Phase & 4 Wire
Dimension (L x W x H): 1800 x 902 x 1477 mm
Technical Data
| Generator Specification | |
| Generator Model | GGS-30-C |
| Frequency | 50Hz |
| Prime Power | 24kW/30kVA |
| Standby Power | 26kW/33kVA |
| Standard Voltage | 400/230V |
| Available Voltage | 380/220V, 415/240V |
| Dimension (L x W x H) (mm) | 1800 x 902 x 1477 |
| Engine Specification | |
| Engine Brand | Cummins |
| Model | 4B3.9G12 |
| Cooling System | Water Cooled |
| Aspiration | Naturally Aspirated |
| Injection Type | Direct |
| Number of Cylinders | 4 Cylinder in Line |
| Cycle | 4 Stroke |
| Starting Method | Electric Start |
| Displacement | 3.9 L |
| Bore x Stroke | 102 x 120 mm |
| Rated Speed | 1500rpm |
| Governor Type | Electronic |
| Alternator Specification | |
| Exciter Type | Brushless, Self-excited |
| Wiring Type | 3 Phase & 4 Wire |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Grade | Class H |
Advantages of Cummins Power Generation Systems
Cummins Power Generation is dedicated to creating systems that deliver exceptional efficiency and performance. By utilizing advanced technology, their generators are designed to minimize fuel consumption while maximizing output. This results in an unbeatable cost-per-hour performance, making them ideal for operations with continuous or frequent power demands. The focus on efficiency translates directly into long-term savings, ensuring affordability over time.
2. Durability and Longevity
Durability is at the core of Cummins' design philosophy. Each generator is constructed with robust materials and advanced engineering techniques, ensuring an extended life cycle. This reduces the frequency and cost of replacements, allowing businesses to extract greater value from their initial investment. Cummins generators are built to last, making them a wise financial choice for long-term applications.
3. Ease of Maintenance and Cost Savings
Cummins generators are engineered with ease of maintenance in mind. The design includes features that reduce the need for frequent servicing, minimizing labor and parts costs over the life of the generator. This results in fewer maintenance requirements, reducing downtime and allowing for a more reliable power supply. With Cummins, businesses can spend less on maintenance and more on enjoying consistent, high-quality power.
