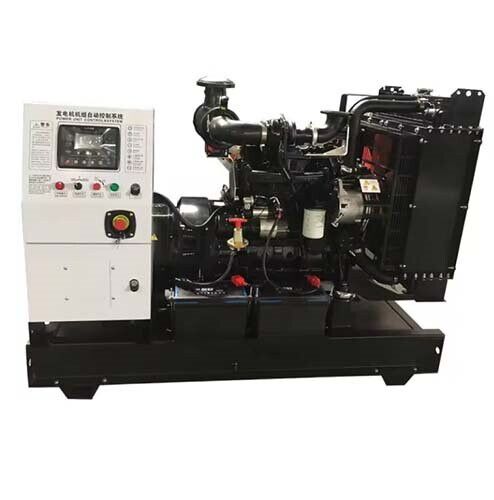

132kW Diesel Generator, 50Hz, Cummins 6CTA8.3-G1, Water Cooled
Key Specifications / Features
Model No.: GGS-240326-DGS-08
Hits: 9
Introducing our robust water-cooled diesel generator, meticulously crafted to deliver dependable power. Powered by the reliable Cummins 6CTA8.3-G1 engine, featuring a durable 6-cylinder in-line configuration, this generator ensures exceptional performance. With a prime power output of 132kW and 165kVA, it stands ready to meet your energy needs with unwavering reliability and efficiency, making it an ideal choice for a wide range of applications.
Request a quote
Tags
Detail Information
Product Name: 132kW Diesel Generator
Frequency: 50Hz
Model: GGS-165-C
Prime Power: 132kW, 165kVA
Rated Voltage: 400V, 230V
Engine Model: Cummins 6CTA8.3-G1
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Model: Stamford UCI274F
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electrical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-165-C |
| Frequency | 50Hz |
| Prime Power | 132kW/165kVA |
| Standby Power | 145kW/181kVA |
| Rated Voltage | 400V/230V |
| Dimension (L x W x H) (mm) | 2450 × 820 × 1450 |
| Gross Weight (KG) | 1500 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6CTA8.3-G1 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged/Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 8.3 L |
| Bore x Stroke | 114 x 135 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1500 RPM |
| Governor type | Mechanical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI274F |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
