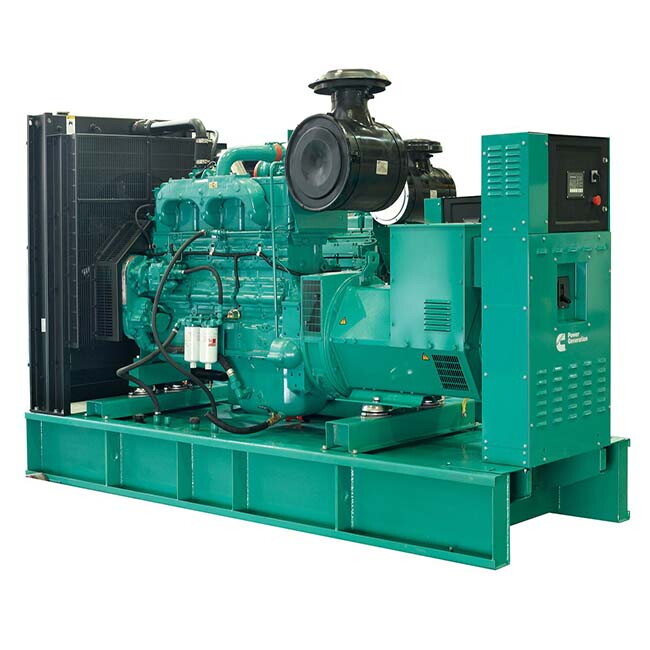

228kW 285kVA Diesel Generator, 6 Cylinder, Cummins 6LTAA8.9-G3
Key Specifications / Features
Model no.: GGS-240326-DGS-09
hits: 1
Presenting our cutting-edge diesel generator, engineered for optimal performance and reliability. Featuring the powerful Cummins 6LTAA8.9-G3 engine and coupled with a high-efficiency Stamford UCDI274J alternator, this generator delivers a robust prime power output of 228kW and 285kVA. Designed to operate at 60Hz frequency with a rated voltage of 400V and 230V, and equipped with an electrical governor, it ensures precise control and stability, making it the perfect solution for demanding industrial and commercial applications.
Request a quote
Tags
Detail Information
Product Name: 228kW 285kVA Diesel Generator
Frequency: 60Hz
Model: GGS-285-C
Prime Power: 228kW, 285kVA
Rated Voltage: 400V, 230V
Engine Model: Cummins 6LTAA8.9-G3
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Model: Stamford UCDI274J
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electrical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-285-C |
| Frequency | 60Hz |
| Prime Power | 228kW/285kVA |
| Standby Power | 250kW/313kVA |
| Rated Voltage | 200V/127V |
| Dimension (L x W x H) (mm) | 2550 × 1020 × 1670 |
| Gross Weight (KG) | 1900 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6LTAA8.9-G3 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged/Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 8.3 L |
| Bore x Stroke | 114 x 135 mm |
| Compression Ratio | 16.6:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electrical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCDI274J |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
