454kVA Diesel Generator, 240V, Cummins 6ZTAA13-G4, 6 Cylinder
Key Specifications / Features
Model No.: GGS-240326-DGS-15
Hits: 7

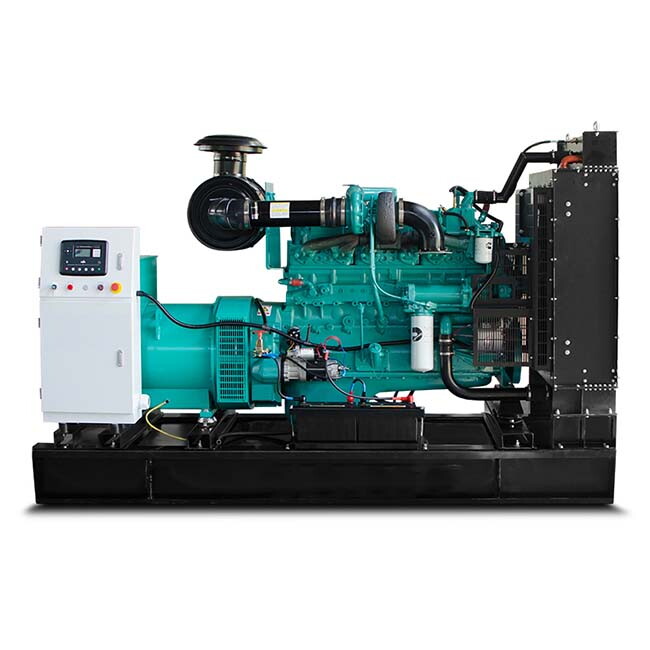

Presenting our cutting-edge diesel generator, boasting a power-packed Cummins 6ZTAA13-G4 engine and a Stamford HCI444F alternator. Operating at 60Hz and delivering a substantial prime power output of 363kW (454kVA), this generator ensures dependable performance for a wide range of applications.
Request a quote
Tags
Detail Information
Product Name: 454kVA Diesel Generator
Frequency: 60Hz
Model: GGS-454-C
Prime Power: 363kW, 454kVA
Rated Voltage: 240V
Engine Model: Cummins 6ZTAA13-G4
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Model: Stamford HCI444F
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electrical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-454-C |
| Frequency | 60Hz |
| Prime Power | 363kW/454kVA |
| Standby Power | 400kW/500kVA |
| Rated Voltage | 240V |
| Dimension (L x W x H) (mm) | 3400 × 1360 × 1980 |
| Gross Weight (KG) | 4100 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6ZTAA13-G4 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged/Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 13 L |
| Bore x Stroke | 130 x 163 mm |
| Compression Ratio | 17:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electrical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI444F |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
