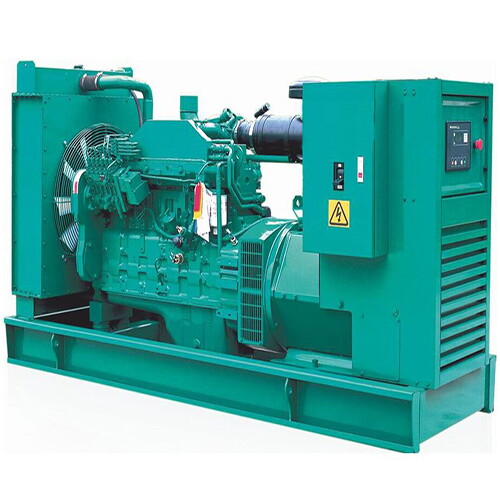

400kVA Diesel Generator, 3 Phase, 6 Cylinder, Cummins Engine
Key Specifications / Features
Model no.: GGS-240322-DGS-08
Hits: 0
Introducing our 320 kW (400 kVA) Diesel Generator, operating at 50Hz and offering voltage options of 400V or 230V. Powered by a Cummins engine with a 4-stroke, 6-cylinder in-line configuration, this generator is equipped with a Stamford alternator. Trust in our generator for reliable power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 400kVA Diesel Generator
Model: GGS-400-C
Prime Power: 320kW, 400kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Engine Model: Cummins NTAA855-G7A
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Model: Stamford HCI444F
Alternator Type: Brushless, Self-excited, AVR
Other Feature: 3 Phase 4 Wire, Water Cooled
Technical Data
| Generator Specification | |
| Generator Model | GGS-400-C |
| Frequency | 50Hz |
| Prime Power | 320kW/400kVA |
| Standby Power | 352kW/440kVA |
| Rated Voltage | 400V, 230V |
| Rated Currency | 540A |
| Dimension (L x W x H) (mm) | 3150 × 1150 × 1998 |
| Gross Weight (KG) | 3500 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | NTAA855-G7A |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged & Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 14 L |
| Bore x Stroke | 140 x 152 mm |
| Compression Ratio | 14.0:1 |
| Rated Speed | 1500 RPM |
| Start Mode | Electric |
| Governor type | Electrical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI444F |
| Excitation system | Brushless, Self-excited, AVR |
| Number of phase | 3 Phase 4 Wire |
| Power Factor | 0.8 lagging |
| Protection Grade | IP23 |
| Insulation Class | H |
