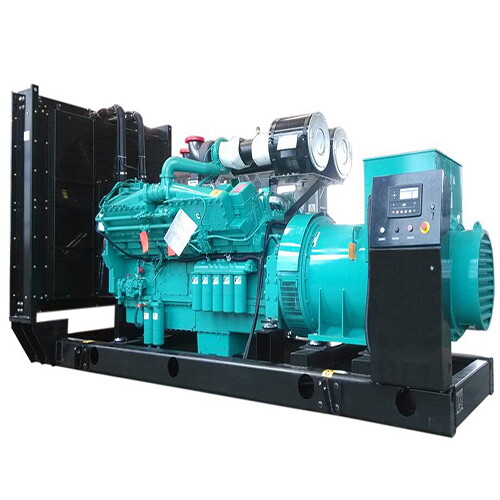

563kVA Diesel Generator, Cummins Powered, 3 Phase, 4 Stroke
Key Specifications / Features
Model No.: GGS-240322-DGS-09
Hits: 10
Introducing our diesel generator, powered by a reliable 4-stroke Cummins engine and equipped with a 3-phase Stamford alternator. This generator offers a prime power output of 450 kW and 563 kVA, ensuring dependable performance. Trust in our generator for reliable power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 563kVA Diesel Generator
Model: GGS-563-C
Prime Power: 450kW, 563kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Engine Model: Cummins KTAA19-G6
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Model: Stamford HCI544E
Alternator Type: Brushless, Self-excited, AVR
Other Feature: 3 Phase 4 Wire, Water Cooled
Technical Data
| Generator Specification | |
| Generator Model | GGS-563-C |
| Frequency | 50Hz |
| Prime Power | 450kW/563kVA |
| Standby Power | 500kW/625kVA |
| Rated Voltage | 400V, 230V |
| Rated Currency | 810A |
| Dimension (L x W x H) (mm) | 3550 × 1550 × 2150 |
| Gross Weight (KG) | 5000 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTAA19-G6 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged & Air to Air Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 19 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 13.5:1 |
| Rated Speed | 1500 RPM |
| Start Mode | Electric |
| Governor type | Mechanical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI544E |
| Excitation system | Brushless, Self-excited, AVR |
| Number of phase | 3 Phase 4 Wire |
| Power Factor | 0.8 lagging |
| Protection Grade | IP23 |
| Insulation Class | H |
