12 Cylinder Diesel Generator, 728kW 910kVA, Cummins, 3 Phase
Key Specifications / Features
Model No.: GGS-240322-DGS-10
Hits: 15

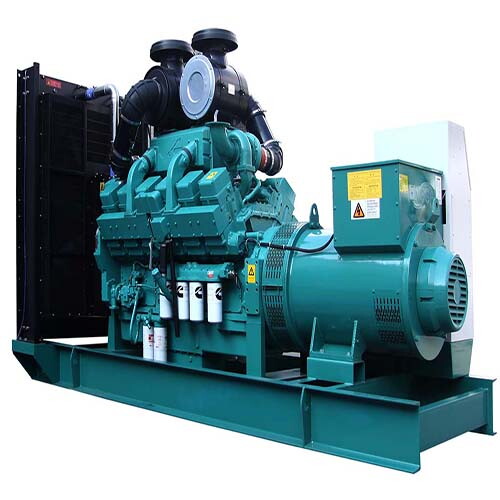

Introducing our 12 Cylinder Diesel Generator, boasting a power output of 728 kW (910 kVA) and powered by a Cummins engine. This generator features a 4-stroke operation with a brushless, self-excited alternator. With water cooling and three-phase capabilities, it ensures reliable performance in various applications. Trust in our generator for dependable power supply.
Request a quote
Tags
Detail Information
Product Name: 12 Cylinder Diesel Generator
Model: GGS-910-C
Prime Power: 728kW, 910kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Engine Model: Cummins KTA38-G2A
Engine Type: 4 Stroke, 12 Cylinder, V Type
Alternator Model: Stamford LVI634D
Alternator Type: Brushless, Self-excited, AVR
Other Feature: 3 Phase 4 Wire, Water Cooled
Technical Data
| Generator Specification | |
| Generator Model | GGS-910-C |
| Frequency | 50Hz |
| Prime Power | 728kW/910kVA |
| Standby Power | 800kW/1000kVA |
| Rated Voltage | 400V, 230V |
| Rated Currency | 1080A |
| Dimension (L x W x H) (mm) | 4400 × 1800 × 2300 |
| Gross Weight (KG) | 7300 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTA38-G2A |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged & Intercooled |
| Number of Cylinders | 12 Cylinder V Type |
| Cycle | 4 Stroke |
| Displacement | 38 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 13.5:1 |
| Rated Speed | 1500 RPM |
| Start Mode | Electric |
| Governor type | Mechanical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | LVI634D |
| Excitation system | Brushless, Self-excited, AVR |
| Number of phase | 3 Phase 4 Wire |
| Power Factor | 0.8 lagging |
| Protection Grade | IP23 |
| Insulation Class | H |
