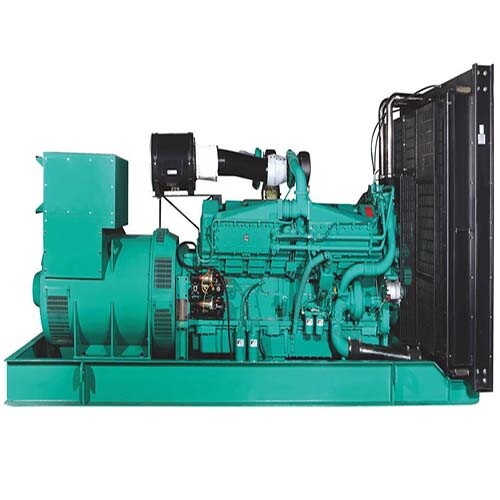

750kW 938kVA Diesel Generator, 3 Phase, 12 Cylinder, Cummins
Key Specifications / Features
Model No.: GGS-240322-DGS-11
Hits: 14
Introducing our 750 kW (938 kVA) Diesel Generator, manufactured with a Cummins engine and designed for 50Hz operation. Featuring a 4-stroke, 12-cylinder configuration, this generator is equipped with a brushless, self-excited Stamford alternator. With a 3-phase, 4-wire setup, it ensures reliable power distribution. Trust in our generator for dependable performance in various applications.
Request a quote
Tags
Detail Information
Product Name: 750kW 938kVA Diesel Generator
Model: GGS-938-C
Rated Power: 750kW, 938kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Engine Model: Cummins KTA38-G2A
Engine Type: 4 Stroke, 12 Cylinder
Alternator Model: Stamford LVI634E
Alternator Type: Brushless, Self-excited, AVR
Other Feature: 3 Phase 4 Wire, Water Cooled
Technical Data
| Generator Specification | |
| Generator Model | GGS-938-C |
| Frequency | 50Hz |
| Prime Power | 750kW/938kVA |
| Standby Power | 825kW/1032kVA |
| Rated Voltage | 400V, 230V |
| Rated Currency | 1080A |
| Dimension (L x W x H) (mm) | 4400 × 1800 × 2300 |
| Gross Weight (KG) | 7380 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTA38-G2A |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged & Intercooled |
| Number of Cylinders | 12 Cylinder |
| Cycle | 4 Stroke |
| Displacement | 38 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 13.5:1 |
| Rated Speed | 1500 RPM |
| Start Mode | Electric |
| Governor type | Mechanical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | LVI634E |
| Excitation system | Brushless, Self-excited, AVR |
| Number of phase | 3 Phase 4 Wire |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
