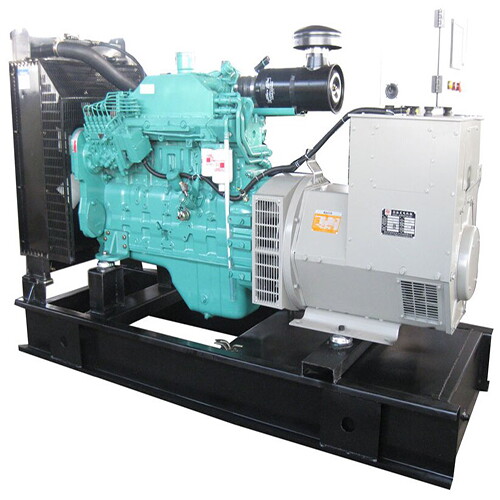

150kW Diesel Generator, 3 Phase, Cummins Engine, 6 Cylinder
Key Specifications / Features
Model no.: GGS-240322-DGS-04
Hits: 0
Introducing our 150 kW (187.5 kVA) Diesel Generator, manufactured with a Cummins engine for reliable performance. Featuring a 6-cylinder, 4-stroke configuration, this generator is equipped with a brushless, self-excited alternator. Operating in three phases with a 4-wire setup, it ensures efficient power distribution. With a water-cooled system, trust in our generator for dependable power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 150kW Diesel Generator
Model: GGS-187-C
Prime Power: 150kW, 187.5kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Engine Model: Cummins 6CTA8.3-G2
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Model: Stamford UCI274H
Alternator Type: Brushless, Self-excited, AVR
Other Feature: 3 Phase 4 Wire, Water Cooled
Technical Data
| Generator Specification | |
| Generator Model | GGS-187-C |
| Frequency | 50Hz |
| Prime Power | 150kW/187.5kVA |
| Standby Power | 165kW/206.25kVA |
| Rated Voltage | 400V, 230V |
| Rated Currency | 270A |
| Dimension (L x W x H) (mm) | 2450 × 850 × 1350 |
| Gross Weight (KG) | 1580 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6CTA8.3-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged/Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 8.3 L |
| Bore x Stroke | 114 x 135 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1500 RPM |
| Start Mode | Electric |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI274H |
| Excitation system | Brushless, Self-excited, AVR |
| Number of phase | 3 Phase 4 Wire |
| Power Factor | 0.8 lagging |
| Protection Grade | IP23 |
| Insulation Class | H |
150Kw Diesel Generator Set
The 150kW diesel generator set is engineered for robust performance and reliability, subjected to a comprehensive performance test at multiple load levels (50%, 70%, 100%, and 110%). This testing ensures that all control systems, alarms, and shutdown protections are thoroughly verified for optimal functionality.
Key Features
High-Performance Powertrain: Powered by a Cummins engine and coupled with a Stamford alternator, this generator set delivers dependable power output across various applications.
Comprehensive Testing: Each unit undergoes rigorous performance testing to ensure reliability and compliance with ISO 8528/GB 2820 standards.
Battery and Starting System: Equipped with a battery charger and 24V high-performance maintenance-free lead-acid starting batteries, along with connecting cables for easy setup and operation.
Durable Construction: Features stainless galvanized zinc plates that provide strong corrosion resistance, enhancing the longevity of the unit.
Vibration Isolation: Vibration isolators between the engine/alternator and base frame minimize operational noise and protect sensitive components.
Exhaust System: Comes with an industrial silencer and flexible exhaust hose to further reduce noise and enhance exhaust management.
Optional Accessories: Available with additional features like a water jacket preheater, oil heater, and double air cleaner for improved performance and maintenance.
Choose the 150kW diesel generator set for a reliable, efficient power solution that meets your operational needs with confidence.
