300kW Diesel Generator, 3 Phase, Cummins Engine, Water Cooled
Key Specifications / Features
Model no.: GGS-240322-DGS-07
Hits: 0

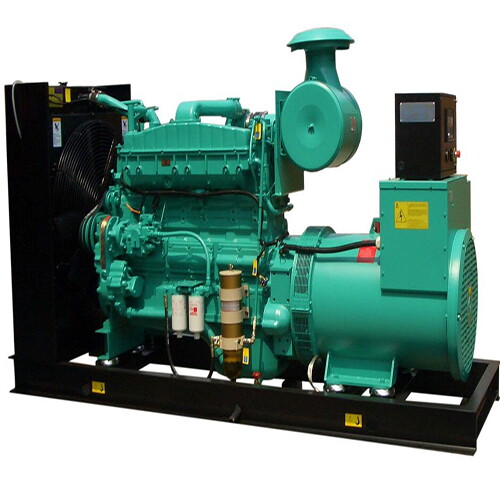

Introducing our 300 kW (375 kVA) Diesel Generator, powered by a Cummins engine with a 4-stroke, 6-cylinder in-line configuration. This generator is equipped with a Stamford alternator for reliable performance. Trust in our generator for dependable power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 300kW Diesel Generator
Model: GGS-375-C
Prime Power: 300kW, 375kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Engine Model: Cummins KTA19-G2
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Model: Stamford HCI444FS
Alternator Type: Brushless, Self-excited, AVR
Other Feature: 3 Phase 4 Wire, Water Cooled
Technical Data
| Generator Specification | |
| Generator Model | GGS-375-C |
| Frequency | 50Hz |
| Prime Power | 300kW/375kVA |
| Standby Power | 330kW/412kVA |
| Rated Voltage | 400V, 230V |
| Rated Currency | 540A |
| Dimension (L x W x H) (mm) | 3200 × 1250 × 2015 |
| Gross Weight (KG) | 3650 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTA19-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged & Intercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 19 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 14.0:1 |
| Rated Speed | 1500 RPM |
| Start Mode | Electric |
| Governor type | Mechanical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI444FS |
| Excitation system | Brushless, Self-excited, AVR |
| Number of phase | 3 Phase 4 Wire |
| Power Factor | 0.8 lagging |
| Protection Grade | IP23 |
| Insulation Class | H |
The Cummins KTA19-G2 engine is a diesel engine produced by Cummins Inc., a global leader in the manufacture of power equipment. Cummins' products are widely used in various sectors such as heavy-duty trucks, construction equipment, power generation, marine, and rail applications.
The KTA19-G2 engine is part of Cummins' KT series, which is known for its reliability, durability, and fuel efficiency. Here are some general characteristics of the engine, though please note that specific specifications can vary depending on the application and configuration:
Displacement: The KTA19 series engines have a large displacement, suitable for applications requiring high power output.Power: They offer a range of power options to meet different work requirements.
Torque: These engines deliver high torque output, ideal for heavy loads and high traction needs.
Fuel Efficiency: Designed with an emphasis on fuel economy to reduce operating costs.
Emission Standards: They comply with stringent emission standards, such as those set by the U.S. Environmental Protection Agency (EPA) and European regulations.
Reliability: Engineered to operate reliably under harsh conditions for extended periods.
Maintenance: Designed for ease of maintenance to minimize downtime and enhance productivity.
