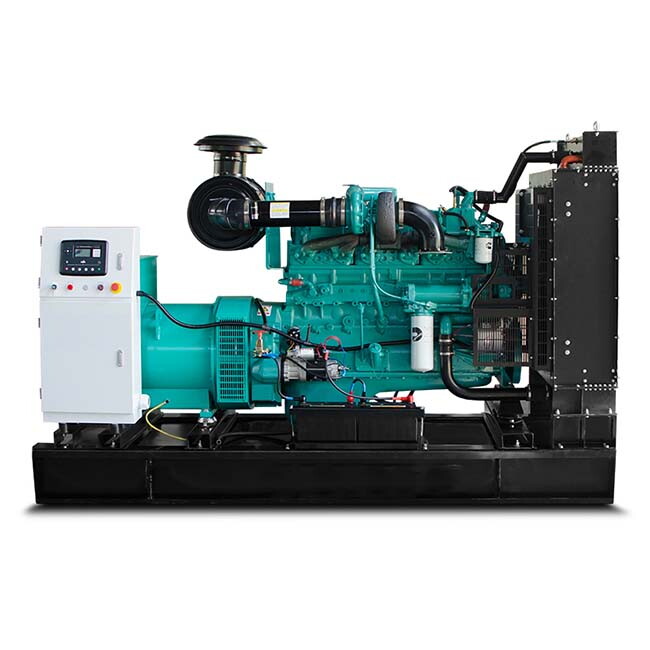

182kW 227kVA Diesel Generator, Cummins 6CTAA8.3G2, 6 Cylinder
Key Specifications / Features
Model no.: GGS-240326-DGS-06
Hits: 0
Present our reliable diesel generator, driven by a Cummins 6CTAA8.3G2 engine and paired with a Stamford UCI274G alternator, providing a prime power output of 182kW (227kVA), ensuring dependable performance for diverse applications.
Request a quote
Tags
Detail Information
Product Name: 182kW 227kVA Diesel Generator
Model: GGS-227-C
Prime Power: 182kW, 227kVA
Frequency: 60Hz
Rated Voltage: 200V, 127V
Engine Model: Cummins 6CTAA8.3G2
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Model: Stamford UCI274G
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electrical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-227-C |
| Frequency | 60Hz |
| Prime Power | 182kW/227kVA |
| Standby Power | 200kW/250kVA |
| Rated Voltage | 200V/127V |

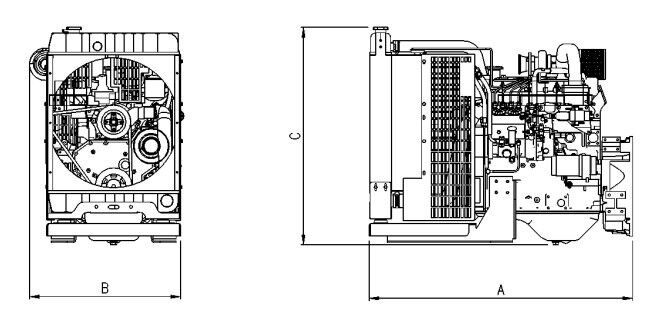

| Dimension (L x W x H) (mm) | 2560 × 950 × 1630 |
| Gross Weight (KG) | 1600 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6CTAA8.3G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged/Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 8.3 L |
| Bore x Stroke | 114 x 135 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electrical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI274G |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
Key Features of 182 kW Diesel Generator Set
Experience unparalleled power and efficiency with our 182 kW (225 kVA) Diesel Generator Set. Designed for optimal performance, this genset utilizes a water cooling system to ensure reliable operation even under heavy loads.
Enhanced Efficiency: The electric start mechanism streamlines your workflow, allowing for quick and easy startup.
Versatile Engine Options: Powered by a robust Cummins diesel engine, this generator operates at a rated speed of 1800 RPM for 60Hz applications and 1500 RPM for 50Hz applications, providing flexibility to meet your specific power needs.
Noise Control: The 2mm thick soundproof canopy effectively reduces noise levels to approximately 78 dB at 7 meters, ensuring a quieter working environment.
Reliable Power Generation: Featuring Stamford or Leroy Somer alternators, this generator set supports multiple rated voltages: 220/127V, 240/138V, and 480/277V, tailored to your requirements.
Robust Specifications: The diesel generator set has a 0.8 power factor, operates on a 3-phase, 4-wire system, and includes automatic voltage regulation for stable output.
Durable Design: With an IP23 protection class, the generator is safeguarded against dust and moisture, ensuring longevity in various operating conditions.
Advanced Control Panel: Equipped with a digital LED control panel, it seamlessly integrates with Deepsea, Smartgen, and ComAp for comprehensive genset monitoring and protection, giving you peace of mind during operation.
This 182 kW Diesel Generator Set combines cutting-edge technology with rugged reliability, making it the perfect choice for your power generation needs.
