44.8kW Diesel Generator, Cummins 4BTA3.9-G2, Stamford UCI224E
Key Specifications / Features
Model no.: GGS-240326-DGS-05
Hits: 0

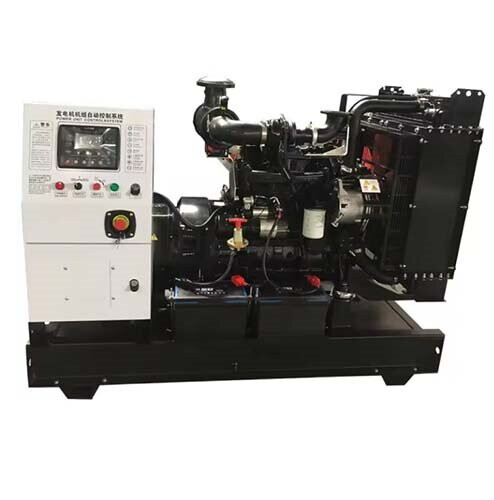

Introducing our 50Hz diesel generator, featuring a Cummins 4BTA3.9-G2 engine and Stamford UCI224E alternator, offering a prime power output of 44.8kW (56kVA), ideal for various applications with its efficient 4-cylinder, water-cooled design.
Request a quote
Tags
Detail Information
Product Name: 44.8kW Diesel Generator
Model: GGS-56-C
Prime Power: 44.8kW, 56kVA
Frequency: 50Hz
Rated Voltage: 200V, 127V
Engine Model: Cummins 4BTA3.9-G2
Engine Type: 4 Stroke, 4 Cylinder in Line
Alternator Model: Stamford UCI224E
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electrical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-56-C |
| Frequency | 50Hz |
| Prime Power | 44.8kW/56kVA |
| Standby Power | 50.4kW/63kVA |
| Rated Voltage | 400V/230V |
| Dimension (L x W x H) (mm) | 1820 × 750 × 1050 |
| Gross Weight (KG) | 1020 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 4BTA3.9-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged/Aftercooled |
| Number of Cylinders | 4 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 3.9 L |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electrical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI224E |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
