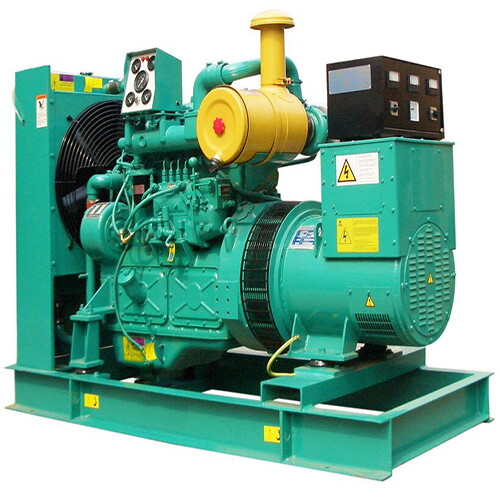

50kW Diesel Generator, Cummins Engine, 4 Stroke, 4 Cylinder
Key Specifications / Features
Model No.: GGS-240322-DGS-01
Hits: 7
Introducing our diesel generator, powered by a reliable 4-stroke, 4-cylinder Cummins engine and featuring a Stamford alternator. This generator offers a prime power output of 50 kW and 62.5 kVA, ensuring dependable performance. Trust in our generator for reliable power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 50kW Diesel Generator
Model: GGS-62.5-C
Prime Power: 50kW, 62.5kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Engine Model: Cummins 4BTA3.9-G2
Engine Type: 4 Stroke, 4 Cylinder in Line
Alternator Model: Stamford UCI224F
Alternator Type: Brushless, Self-excited, AVR
Other Feature: 3 Phase 4 Wire, Water Cooled
Technical Data
| Generator Specification | |
| Generator Model | GGS-62.5-C |
| Frequency | 50Hz |
| Prime Power | 50kW/62.5kVA |
| Standby Power | 55kW/68.75kVA |
| Rated Voltage | 400V, 230V |
| Rated Currency | 90A |
| Dimension (L x W x H) (mm) | 1800 × 750 × 1200 |
| Gross Weight (KG) | 950 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 4BTA3.9-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged & Aftercooler |
| Number of Cylinders | 4 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 3.9 L |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1500 RPM |
| Start Mode | Electric |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI224F |
| Excitation system | Brushless, Self-excited, AVR |
| Number of phase | 3 Phase 4 Wire |
| Power Factor | 0.8 lagging |
| Protection Grade | IP23 |
| Insulation Class | H |
