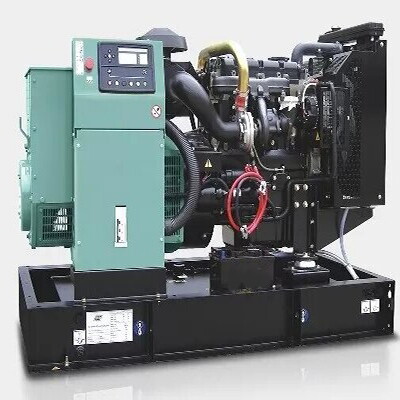

54kW 68kVA Cummins Powered Diesel Generator, 60Hz, 4 Stroke
Key Specifications / Features
Model no.: GGS-240312-DGS-08
Hits: 1
Introducing the 54kW Cummins Powered Diesel Generator, a robust solution for prime power applications. Operating at 60Hz, it delivers a prime power output of 54kW (68kVA) with a versatile 3-phase, 4-wire configuration. Fueled by a dependable 4-cylinder, 4-stroke engine, this generator ensures efficient and reliable performance. With water cooling technology, it is designed for optimal operation. Offering voltage options of 220V and 127V, it caters to various electrical requirements.
Request a quote
Tags
Detail Information
Product Name: 54kW 68kVA Cummins Powered Diesel Generator
Model: GGS-68-C
Engine Brand: Cummins
Frequency: 60Hz
Prime Power: 54kW, 68kVA
Rated Voltage: 220V, 127V
Rated Current: 197A
Cooling Method: Water Cooled
Engine Type: 4 Cylinder, 4 Stroke
Alternator Type: Brushless, Self-Excited, 3 Phase 4 Wire
Dimension (L x W x H): 2300 x 960 x 1400 mm
Technical Data
| Generator Specification | |
| Generator Model | GGS-68-C |
| Frequency | 60Hz |
| Prime Power | 54kW/68kVA |
| Standby Power | 60kW/75kVA |
| Rated Voltage | 220V, 127V |
| Rated Current | 197A |
| Dimension (L x W x H) (mm) | 2300 x 960 x 1400 |
| Net Weight (KG) | 1150 |
| Engine Specification | |
| Engine Brand | Cummins |
| Model | 4BTA3.9-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Fuel System | BYC A/Electronic Governor |
| Number of Cylinders | 4 Cylinder In Line |
| Cycle | 4 Stroke |
| Starting Method | Electric Start |
| Displacement | 3.9 L |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1800rpm |
| Rated Power (With Fan) | 67kW |
| Governor Type | Electrical |
| Alternator Specification | |
| Alternator Brand | Stamford UCI224E |
| Exciter Type | Brushless, Self-Excitation |
| Wiring Type | 3 Phase 4 Wire, Y Type |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Grade | Class H |
