727kW Diesel Generator, 60Hz, 12 Cylinder, Cummins KTA38-G2B
Key Specifications / Features
Model no.: GGS-240326-DGS-07
Hits: 1

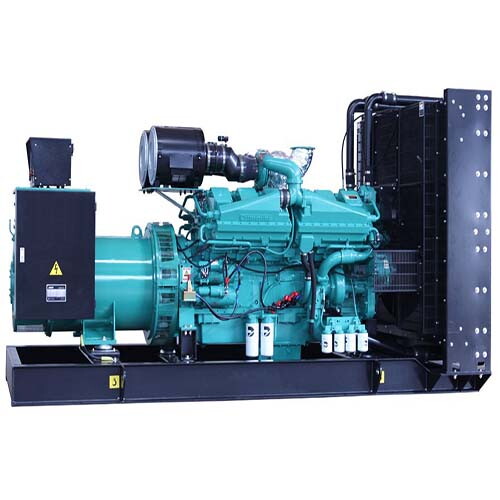

Introducing our robust diesel generator, featuring a Cummins KTA38-G2B engine in a 4-stroke, 12-cylinder V-type configuration, paired with a Stamford LVI634G alternator, delivering 727kW (909kVA) of reliable power at 60Hz.
Request a quote
Tags
Detail Information
Product Name: 727kW Diesel Generator
Model: GGS-909-C
Prime Power: 727kW, 909kVA
Frequency: 60Hz
Rated Voltage: 200V, 127V
Engine Model: Cummins KTA38-G2B
Engine Type: 4 Stroke, 12 Cylinder V Type
Alternator Model: Stamford LVI634G
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electrical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-909-C |
| Frequency | 60Hz |
| Prime Power | 727kW/909kVA |
| Standby Power | 800kW/1000kVA |
| Rated Voltage | 200V/127V |
| Dimension (L x W x H) (mm) | 4251 × 1850 × 2400 |
| Gross Weight (KG) | 9500 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTA38-G2B |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged/Aftercooled |
| Number of Cylinders | 12 Cylinder V Type |
| Cycle | 4 Stroke |
| Displacement | 37.8 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 14.5:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electrical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | LVI634G |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
