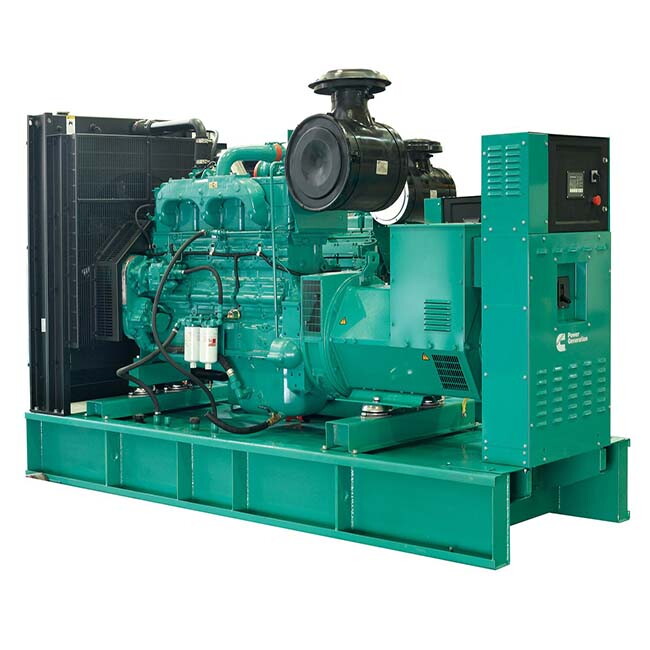

273kVA Diesel Generator, 60Hz, Cummins 6LTAA8.9-G2, 4 Stroke
Key Specifications / Features
Model no.: GGS-240326-DGS-11
Hits: 0
Introducing our cutting-edge 218kW (273kVA) diesel generator, powered by the robust Cummins 6LTAA8.9-G2 engine, renowned for its reliability and efficiency. Operating at 60Hz with a 4-stroke, 6-cylinder in-line configuration and water-cooling system, this generator ensures dependable power supply for various applications.
Request a quote
Tags
Detail Information
Product Name: 273kVA Diesel Generator
Frequency: 60Hz
Model: GGS-273-C
Prime Power: 218kW, 273kVA
Rated Voltage: 133V, 230V
Engine Model: Cummins 6LTAA8.9-G2
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Model: Stamford UCDI274J
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electrical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-273-C |
| Frequency | 60Hz |
| Prime Power | 218kW/273kVA |
| Standby Power | 240kW/300kVA |
| Rated Voltage | 133V, 230V |
| Dimension (L x W x H) (mm) | 1240 × 780 × 1185 |
| Gross Weight (KG) | 650 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6LTAA8.9-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged/Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 8.9 L |
| Bore x Stroke | 114 x 145 mm |
| Compression Ratio | 16.6:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electrical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCDI274J |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
