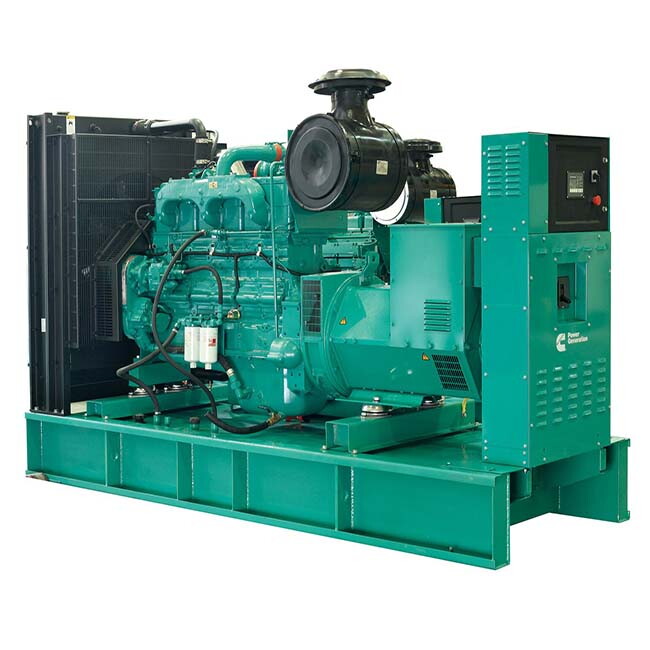

145kW Diesel Generator, 60Hz, 400V, 230V, Cummins 6CTA8.3-G1
Key Specifications / Features
Model no.: GGS-240326-DGS-10
Hits: 5
Unveiling our state-of-the-art 4-stroke diesel generator, featuring the renowned Cummins 6CTA8.3-G1 engine paired with a dependable Stamford UCI274F alternator. With a prime power output of 145kW and 182kVA, this generator ensures reliable performance for a wide range of applications. Built to deliver efficiency and durability, it stands as a testament to quality engineering and innovation.
Request a quote
Tags
Detail Information
Product Name: 145kW Diesel Generator
Frequency: 60Hz
Model: GGS-182-C
Prime Power: 145kW, 182kVA
Rated Voltage: 400V, 230V
Engine Model: Cummins 6CTA8.3-G1
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Model: Stamford UCI274F
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electrical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-182-C |
| Frequency | 60Hz |
| Prime Power | 145kW/182kVA |
| Standby Power | 160kW/200kVA |
| Rated Voltage | 240V |
| Dimension (L x W x H) (mm) | 2450 × 860 × 1450 |
| Gross Weight (KG) | 1500 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6CTA8.3G1 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged/Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 8.3 L |
| Bore x Stroke | 114 x 135 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electrical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI274F |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
