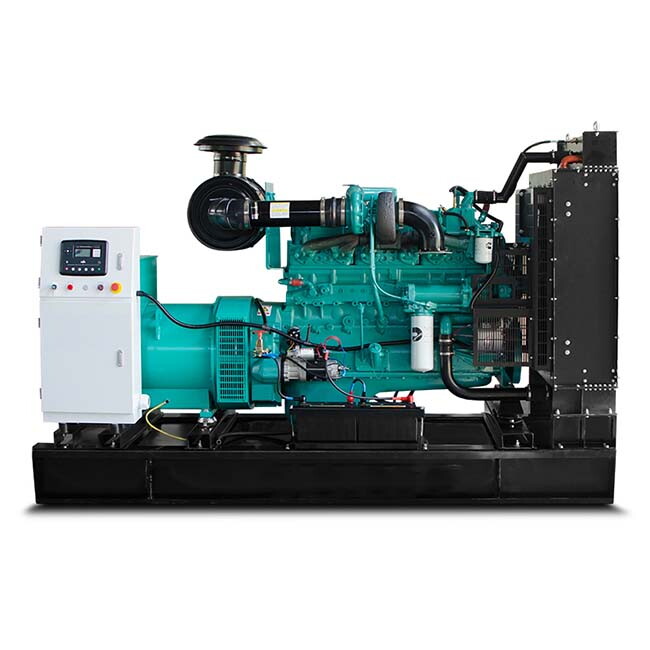

113kVA Diesel Generator, 50Hz, Cummins 6BTA5.9-G2, 6 Cylinder
Key Specifications / Features
Model No.: GGS-240326-DGS-03
Hits: 15
Introducing our 50Hz diesel generator, equipped with the Cummins 6BTA5.9-G2 engine, featuring a 6-cylinder configuration. With a power output of 90kW (113kVA) and an electrical governor, it offers dependable performance for various applications.
Request a quote
Tags
Detail Information
Product Name: 113kVA Diesel Generator
Model: GGS-113-C
Prime Power: 90kW, 113kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Engine Model: Cummins 6BTA5.9-G2
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Model: Stamford UCI274D
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electrical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-113-C |
| Frequency | 50Hz |
| Prime Power | 90kW/113kVA |
| Standby Power | 100kW/125kVA |
| Rated Voltage | 400V/230V |
| Dimension (L x W x H) (mm) | 2120 × 910 × 1310 |
| Gross Weight (KG) | 1250 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6BTA5.9-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged/Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 5.9 L |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.0:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electrical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI274D |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
