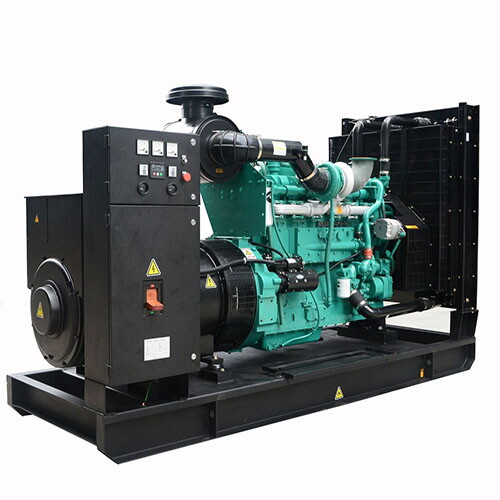

92kW 115kVA Diesel Generator, Cummins 6BTA5.9-G2, 6 Cylinder
Key Specifications / Features
Model No.: GGS-240402-DGS-01
Hits: 11
The diesel generator, operating at 50Hz, is propelled by a reliable 6-cylinder Cummins 6BTA5.9-G2 engine, ensuring robust performance with a prime power output of 92kW and 115kVA, while its efficient water cooling system enhances overall reliability and longevity.
Request a quote
Tags
Detail Information
Product Name: 92kW 115kVA Diesel Generator
Model: GGS-115-C
Frequency: 50Hz
Prime Power: 92kW, 115kVA
Standby Power: 101kW, 127kVA
Rated Voltage: 230V, 400V
Displacement: 5.9 L
Bore x Stroke: 102 x 120 mm
Compression Ratio: 17.3:1
Engine: Cummins 6BTA5.9-G2, 4 Stroke, 6 Cylinder in Line
Alternator: Stamford PI044D, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-115-C |
| Frequency | 50Hz |
| Prime Power | 92kW/115kVA |
| Standby Power | 101kW/127kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 2790 x 1100 x 1500 |
| Gross Weight (KG) | 1670 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6BTA5.9-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged & Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 5.9 L |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electrical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | PI044D |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
