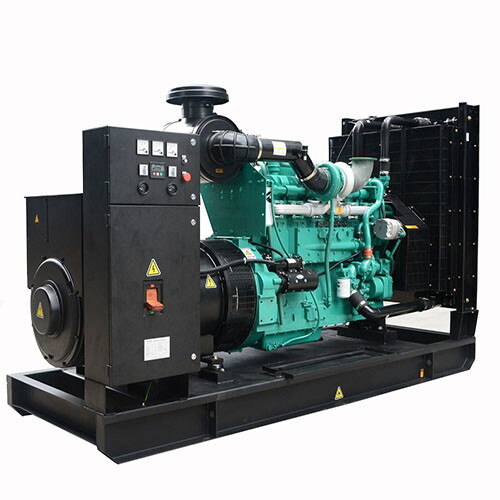

360kW 450kVA Diesel Generator, Three Phase, Cummins KTA19-G3
Key Specifications / Features
Model No.: GGS-240401-DGS-08
Hits: 31
Introducing our high-performance three-phase diesel generator, offering a prime power output of 360kW and 450kVA. Powered by a reliable Cummins KTA19-G3 engine with a 4-stroke, 6-cylinder configuration, and equipped with a Stamford HCI544C alternator, this generator ensures robust and reliable power supply for your applications. Operating at a frequency of 50Hz, it is designed to meet the demands of various industrial and commercial settings with efficiency and durability.
Request a quote
Tags
Detail Information
Product Name: 360kW 450kVA Diesel Generator
Model: GGS-450-C
Frequency: 50Hz
Prime Power: 360kW, 450kVA
Standby Power: 396kW, 495kVA
Rated Voltage: 230V, 400V
Displacement: 19 L
Bore x Stroke: 159 x 159 mm
Compression Ratio: 13.9:1
Engine: Cummins KTA19-G3, 4 Stroke, 6 Cylinder in Line
Alternator: Stamford HCI544C, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-450-C |
| Frequency | 50Hz |
| Prime Power | 360kW/450kVA |
| Standby Power | 396kW/495kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 3140 x 1310 x 2130 |
| Gross Weight (KG) | 4200 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTA19-G3 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged and Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 19 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 13.9:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI544C |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
