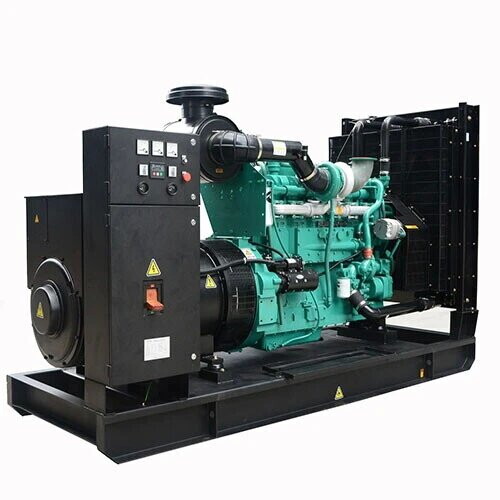

135kVA Diesel Generator, 50Hz, Cummins 6BTAA5.9-G2, 4 Stroke
Key Specifications / Features
Model no.: GGS-240407-DGS-05
hits: 2
Presenting our 4-stroke diesel generator, powered by a reliable 6-cylinder Cummins 6BTAA5.9-G2 engine, delivering a prime power of 108 kW and 135 kVA. With its efficient water cooling system, this generator ensures consistent performance and reliability in diverse operating conditions.
Request a quote
Tags
Detail Information
Product Name: 135kVA Diesel Generator
Model: GGS-135-C
Frequency: 50Hz
Prime Power: 108kW, 135kVA
Standby Power: 116kW, 145kVA
Rated Voltage: 230V, 400V
Displacement: 5.9 L
Bore x Stroke: 102 x 120 mm
Compression Ratio: 16.5:1
Engine: Cummins 6BTAA5.9-G2, 4 Stroke, 6 Cylinder
Alternator: Stamford UCI274E
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-135-C |
| Frequency | 50Hz |
| Prime Power | 108kW/135kVA |
| Standby Power | 116kW/145kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 2450 x 810 x 1345 |
| Gross Weight (KG) | 1100 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6BTAA5.9-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder |
| Cycle | 4 Stroke |
| Displacement | 5.9 L |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 16.5:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI274E |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
135kVA Diesel Generator Specifications
1. Voltage Available
50Hz: 380V/220V, 400V/230V, 415V/240V, 480V/277V
60Hz: 220V/127V, 230V/132V, 220V/440V, 240V/480V
Custom Voltages: Available upon request.
2. Prime Power
Compliance: GB/T2820-97 (equivalent to ISO 8528).
Operation: Capable of running continuously within a specified power range.
Overload: Allows for one hour of 10% overload every 12 running hours.
3. Standby Power
Purpose: Maximum output for emergency use only.
Overloading: Prohibited.
4. Product Features
Control Panel: Includes a full control panel with power indicator light and oil light.
Safety: Equipped with emergency shutdown features for low oil pressure and high water temperature.
Fuel Tank: Large fuel tank ensures continuous operation.
Noise & Vibration: Designed for low noise and vibration levels.
Structure: Compact design for efficient use of space.
Performance: Reliable and consistent performance.
Installation & Maintenance: Easy to install and maintain.
Frequency Options: Available in both 50Hz and 60Hz configurations.
