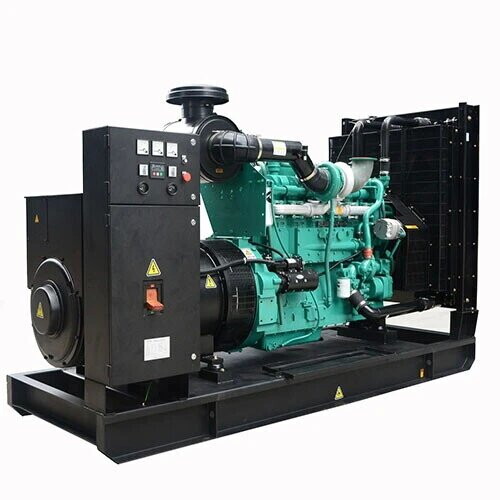

169kVA Diesel Generator, 60Hz, 4 Stroke, Cummins 6BTAA5.9-G12
Key Specifications / Features
Model No.: GGS-240407-DGS-06
Hits: 17
Introducing our 60Hz diesel generator, featuring a prime power output of 135 kW and 169 kVA. Equipped with a robust Cummins 6BTAA5.9-G12 engine boasting 6 cylinders, and paired with a dependable Stamford UCI274F alternator, this generator ensures reliable performance. With efficient water cooling, it's suitable for a wide range of applications.
Request a quote
Tags
Detail Information
Product Name: 169kVA Diesel Generator
Model: GGS-169-C
Frequency: 60Hz
Prime Power: 135kW, 169kVA
Standby Power: 149kW, 186kVA
Rated Voltage: 127V, 220V
Displacement: 5.9 L
Bore x Stroke: 102 x 120 mm
Compression Ratio: 17.3:1
Engine: Cummins 6BTAA5.9-G12, 4 Stroke, 6 Cylinder, Vertical in Line
Alternator: Stamford UCI274F
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-169-C |
| Frequency | 60Hz |
| Prime Power | 135kW/169kVA |
| Standby Power | 149kW/186kVA |
| Rated Voltage | 127V, 220V |
| Dimension (L x W x H) (mm) | 2220 x 785 x 1440 |
| Gross Weight (KG) | 1300 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6BTAA5.9-G12 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder, Vertical in Line |
| Cycle | 4 Stroke |
| Displacement | 5.9 L |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI274F |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
