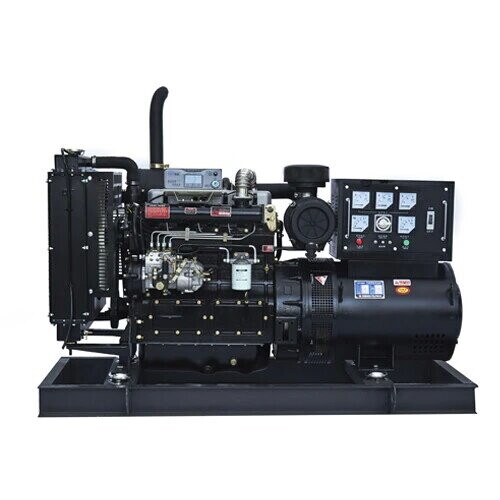

80kW Diesel Generator, 60Hz, Perkins 1104C-44TAG2, 4 Cylinder
Key Specifications / Features
Model No.: GGS-240407-DGS-07
Hits: 22
Introducing our 60Hz 4-cylinder diesel generator, offering a prime power of 80 kW and 100 kVA. Driven by the dependable Perkins 1104C-44TAG2 engine, and paired with a robust Stamford UCI274C alternator, this generator ensures reliable performance for various applications.
Request a quote
Tags
Detail Information
Product Name: 80kW Diesel Generator
Model: GGS-100-P
Frequency: 60Hz
Prime Power: 80kW, 100kVA
Standby Power: 88kW, 110kVA
Rated Voltage: 127V, 220V
Displacement: 4.4 L
Bore x Stroke: 105 x 127 mm
Compression Ratio: 18.23:1
Engine: Perkins 1104C-44TAG2, 4 Stroke, 4 Cylinder, Vertical in Line
Alternator: Stamford UCI274C
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-100-P |
| Frequency | 60Hz |
| Prime Power | 80kW/100kVA |
| Standby Power | 88kW/110kVA |
| Rated Voltage | 127V, 220V |
| Dimension (L x W x H) (mm) | 1810 x 750 x 1400 |
| Gross Weight (KG) | 1250 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 1104C-44TAG2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 4 Cylinder, Vertical in Line |
| Cycle | 4 Stroke |
| Displacement | 4.4 L |
| Bore x Stroke | 105 x 127 mm |
| Compression Ratio | 18.23:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI274C |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
