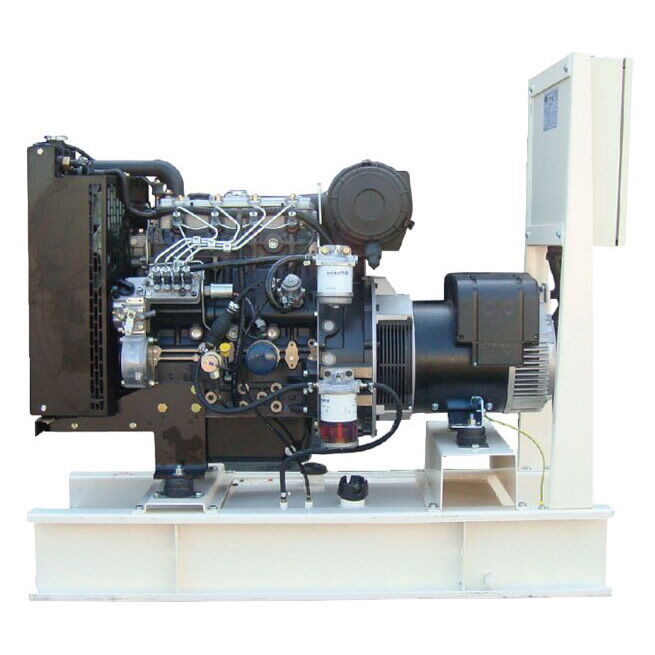

19kW 24kVA Diesel Generator, 60Hz, Perkins 404D-22G, 4 Stroke
Key Specifications / Features
Model No.: GGS-240328-DGS-01
Hits: 20
Explore our range of 60Hz, 3-phase diesel generators boasting a robust 4-stroke design with a prime power output of 19kW (24kVA). With flexible rated voltage options including 127V and 220V, each generator features a dependable 4-cylinder Perkins 404D-22G engine to ensure reliable and efficient operation.
Request a quote
Tags
Detail Information
Product Name: 19kW 24kVA Diesel Generator
Model: GGS-24-P
Frequency: 60Hz
Prime Power: 19kW, 24kVA
Standby Power: 20.9kW, 26kVA
Rated Voltage: 127V, 220V
Displacement: 2.2 L
Bore x Stroke: 84 x 100 mm
Compression Ratio: 23.3:1
Engine: Perkins 404D-22G, 4 Stroke, 4 Cylinder in Line
Alternator: Stamford PI144D, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Mechanical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-24-P |
| Frequency | 60Hz |
| Prime Power | 19kW/24kVA |
| Standby Power | 20.9kW/26kVA |
| Rated Voltage | 220V, 127V |
| Dimension (L x W x H) (mm) | 1390 x 550 x 1200 |
| Gross Weight (KG) | 493 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 404D-22G |
| Cooling System | Water Cooled |
| Aspiration | Naturally Aspirated |
| Number of Cylinders | 4 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 2.2 L |
| Bore x Stroke | 84 x 100 mm |
| Compression Ratio | 23.3:1 |
| Rated Speed | 1800 RPM |
| Governor type | Mechanical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | PI144D |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
Key Components of Perkins 404D-22G Engine (19kW Diesel Generator)
The Perkins 404D-22G engine is designed for reliability and efficiency, featuring an array of standard equipment that enhances performance and ease of use.
Mounted Air Filter: Ensures clean air intake for optimal engine performance.
Control System
12 Volt Electronic Shut Off Solenoid (ESOS): Energized to run for enhanced safety and efficiency.
12 Volt Starter Motor: Provides reliable starting capabilities.
12 Volt, 14 Amp Alternator: Delivers DC output for battery charging.
Glow Plug Cold Start Aid: Facilitates easier cold starts.
Heater/Starter Switch: Simplifies operation with intuitive controls.
Oil Pressure and Coolant Temperature Switches: Monitor critical engine parameters for safe operation.
Cooling System
Thermostatically Controlled System: Maintains optimal operating temperatures.
Belt Driven Coolant Pump: Ensures efficient coolant circulation.
Pusher Fan: Enhances cooling performance.
Mounted Radiator, Piping, and Guards: Comprehensive cooling solution for reliable performance.
Flywheel and Flywheel Housing
1500/1800 RPM High Inertia Flywheel: SAE J620 size 7½ heavy flywheel housing (SAE 4 long).
3000 RPM High Inertia Flywheel: SAE J620 size 7½ light flywheel housing (SAE 4 short) for enhanced stability.
Fuel System
Mechanically Governed Cassette Type Fuel Injection Pump: Provides precise fuel delivery for efficient combustion.
Split Element Fuel Filter: Ensures clean fuel supply for optimal engine operation.
Oil System
Wet Steel Sump: Features a filler and dipstick for easy maintenance.
Spin-On Full Flow Lubricating Oil Filter: Simplifies oil changes and ensures clean lubrication.
The Perkins 404D-22G engine is engineered for robust performance, equipped with essential features that ensure reliability and efficiency across various applications.
