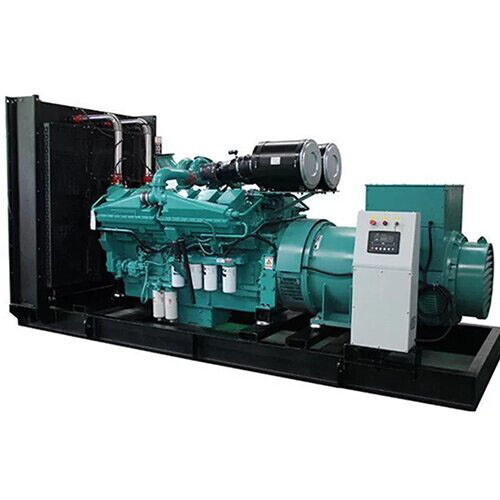

640kW 800kVA Diesel Generator, Cummins KTA38-G2B, 12 Cylinder
Key Specifications / Features
Model No.: GGS-240401-DGS-04
Hits: 17
Introducing our high-performance diesel generator, featuring a Cummins KTA38-G2B Engine and a Stamford HCI634G Alternator, delivering a robust prime power output of 640kW and 800kVA. With its 4-stroke 12-cylinder design and electric governor system, this generator ensures reliable and efficient operation, making it an ideal solution for various industrial and commercial applications requiring dependable power supply.
Request a quote
Tags
Detail Information
Product Name: 640kW 800kVA Diesel Generator
Model: GGS-800-C
Frequency: 50Hz
Prime Power: 640kW, 800kVA
Standby Power: 704kW, 880kVA
Rated Voltage: 230V, 400V
Displacement: 38 L
Bore x Stroke: 159 x 159 mm
Compression Ratio: 14.5:1
Engine: Cummins KTA38-G2B, 4 Stroke, 12 Cylinder, V Type
Alternator: Stamford HCI634G, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-800-C |
| Frequency | 50Hz |
| Prime Power | 640kW/800kVA |
| Standby Power | 704kW/880kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 4200 x 1700 x 2300 |
| Gross Weight (KG) | 7450 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTA38-G2B |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged and Aftercooled |
| Number of Cylinders | 12 Cylinder, V Type |
| Cycle | 4 Stroke |
| Displacement | 38 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 14.5:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI634G |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
