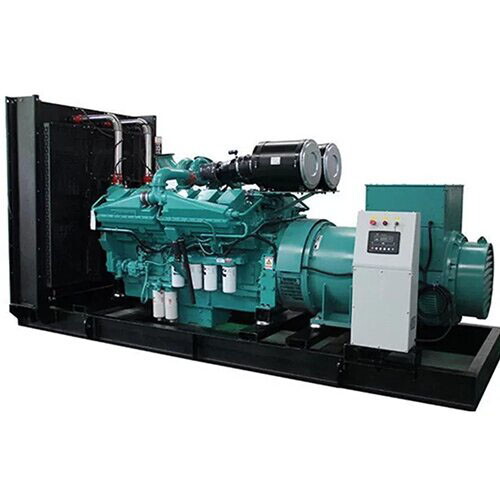

800kW Diesel Generator, 60Hz, Cummins KTA38-G2A, 12 Cylinder
Key Specifications / Features
Model No.: GGS-240402-DGS-11
Hits: 7
Delivering robust power output, the 12-cylinder diesel generator is equipped with a Cummins KTA38-G2A engine and a Stamford LVI634D alternator, ensuring reliable performance. With a prime power output of 800kW and 1000kVA, this generator is suitable for demanding industrial and commercial applications where uninterrupted power supply is essential.
Request a quote
Tags
Detail Information
Product Name: 800kW Diesel Generator
Model: GGS-1000-C
Frequency: 60Hz
Prime Power: 800kW, 1000kVA
Standby Power: 880kW, 1100kVA
Rated Voltage: 127V, 220V
Displacement: 38 L
Bore x Stroke: 159 x 159 mm
Compression Ratio: 14.5:1
Engine: Cummins KTA38-G2A, 4 Stroke, 12 Cylinder V Type
Alternator: Stamford LVI634D, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Mechanical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-1000-C |
| Frequency | 60Hz |
| Prime Power | 800kW/1000kVA |
| Standby Power | 880kW/1100kVA |
| Rated Voltage | 127V, 220V |
| Dimension (L x W x H) (mm) | 4300 x 1700 x 2300 |
| Weight | 7700 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTA38-G2A |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged & Aftercooled |
| Number of Cylinders | 12 Cylinder V Type |
| Cycle | 4 Stroke |
| Displacement | 38 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 14.5:1 |
| Rated Speed | 1800 RPM |
| Governor type | Mechanical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | LVI634D |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
