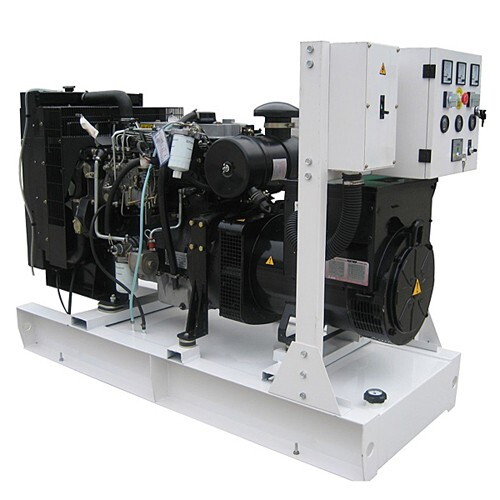

450kW Diesel Generator, Perkins 2806C-E18TAG1A, 6 Cylinder
Key Specifications / Features
Model no.: GGS-240402-DGS-12
hits: 0
Crafted for reliability and efficiency, our 450kW diesel generator boasts a Perkins 2806C-E18TAG1A engine and a Stamford HCI544D alternator, ensuring seamless power delivery. Operating at 60Hz with three-phase capability, this generator is equipped with a water-cooled, 6-cylinder, 4-stroke design, making it ideal for a wide range of applications where dependable power is paramount.
Request a quote
Tags
Detail Information
Product Name: 450kW Diesel Generator
Model: GGS-563-P
Frequency: 60Hz
Prime Power: 450kW, 563kVA
Standby Power: 500kW, 625kVA
Rated Voltage: 127V, 220V
Displacement: 18.13 L
Bore x Stroke: 145 x 183 mm
Compression Ratio: 14.5:1
Engine: Perkins 2806C-E18TAG1A, 4 Stroke, 6 Cylinder Vertical in Line
Alternator: Stamford HCI544D, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-563-P |
| Frequency | 60Hz |
| Prime Power | 450kW/563kVA |
| Standby Power | 500kW/625kVA |
| Rated Voltage | 127V, 220V |
| Dimension (L x W x H) (mm) | 3230 x 1550 x 2200 |
| Weight | 4700 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 2806C-E18TAG1A |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder Vertical in Line |
| Cycle | 4 Stroke |
| Displacement | 18.13 L |
| Bore x Stroke | 145 x 183 mm |
| Compression Ratio | 14.5:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI544D |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
