200kW Diesel Generator, 50Hz, 4 Stroke, Cummins 6LTAA8.9-G2
Key Specifications / Features
Model no.: GGS-240402-DGS-03
Hits: 2
Operating with optimal efficiency, the 4-stroke diesel generator stands as a stalwart power solution, boasting a prime power output of 200kW and 250kVA. Its reliable performance is attributed to the commanding Cummins 6LTAA8.9-G2 engine, complemented seamlessly by the Stamford UCDI274K alternator, ensuring uninterrupted power supply across varied applications and demanding environments.
Request a quote
Tags
Detail Information
Product Name: 200kW Diesel Generator
Model: GGS-250-C
Frequency: 50Hz
Prime Power: 200kW, 250kVA
Standby Power: 211kW, 264kVA
Rated Voltage: 400V
Displacement: 8.9 L
Bore x Stroke: 114 x 145 mm
Compression Ratio: 16.6:1

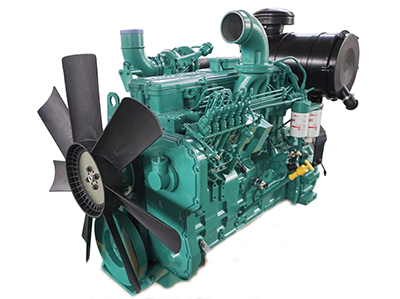

Engine: Cummins 6LTAA8.9-G2, 4 Stroke, 6 Cylinder in Line
Alternator: Stamford UCDI274K, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-250-C |
| Frequency | 50Hz |
| Prime Power | 200kW/250kVA |
| Standby Power | 211kW/264kVA |
| Rated Voltage | 400V |
| Dimension (L x W x H) (mm) | 2584 x 1008 x 1668 |
| Gross Weight (KG) | 2022 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6LTAA8.9-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 8.9 L |
| Bore x Stroke | 114 x 145 mm |
| Compression Ratio | 16.6:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electrical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCDI274K |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
200 kW Diesel Generator Set
The 200 kW Diesel Generator Set is engineered for robust performance and reliability, designed to meet the demanding needs of various industrial applications. This generator set undergoes rigorous performance testing to ensure it operates efficiently under different loads.
Comprehensive Performance Testing: Each unit is subjected to extensive testing, including evaluations at 50%, 70%, 100%, and 110% loads. This ensures that all control systems, alarms, and shutdown protections are verified and fully operational.
Powerful Engine and Alternator: Powered by a Cummins engine and coupled with a Stamford alternator, this generator set provides consistent and reliable power output, suitable for critical applications.
High-Performance Starting System: Equipped with a 24V high-performance maintenance-free lead-acid starting battery and connecting cables, ensuring reliable startup even under demanding conditions.
Corrosion-Resistant Construction: Built with stainless galvanized zinc plates, the generator set offers enhanced durability and resistance to corrosion, extending its lifespan in harsh environments.
Vibration Isolation: Featuring vibration isolators between the engine/alternator and the base frame, this design minimizes vibration transfer, enhancing stability and reducing wear on components.
Quiet Operation: Includes an industrial silencer and flexible exhaust hose to minimize noise levels, making it suitable for use in noise-sensitive environments.
Compliance with Standards: Designed to comply with ISO 8528 and GB 2820 standards, ensuring high quality and safety in operation.
Additional Options: Optional features such as a water jacket preheater, oil heater, and double air cleaner are available to enhance performance and maintenance ease.
The 200 kW Diesel Generator Set combines powerful performance with advanced safety features and durability, making it an ideal choice for businesses seeking reliable backup power solutions.
