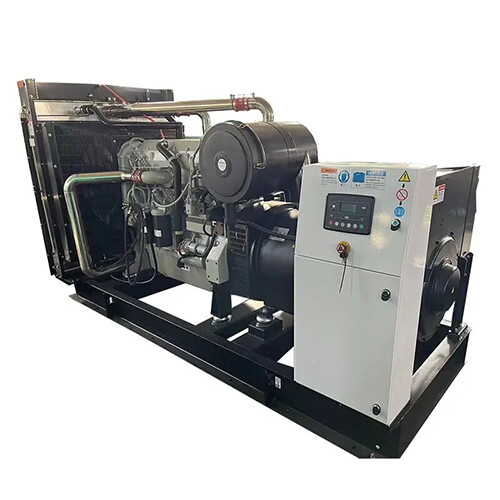

250kVA Diesel Generator, Perkins 1506A-E88TAG3, Six Cylinder
Key Specifications / Features
Model no.: GGS-240403-DGS-08
Hits: 1
Introducing our six-cylinder diesel generator, engineered for reliable performance at 50Hz with a prime power output of 200kW and 250kVA. Powered by the Perkins 1506A-E88TAG3 engine and paired with a Stamford UCDI274K alternator, this generator is ideal for applications requiring continuous and stable power supply in three-phase configurations.
Request a quote
Tags
Detail Information
Product Name: 250kVA Diesel Generator
Model: GGS-250-P
Frequency: 50Hz
Prime Power: 200kW, 250kVA
Standby Power: 220kW, 275kVA
Rated Voltage: 230V, 400V
Displacement: 8.8 L
Bore x Stroke: 112 x 149 mm
Compression Ratio: 16.1:1
Engine: Perkins 1506A-E88TAG3, 4 Stroke, 6 Cylinder
Alternator: Stamford UCDI274K, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-250-P |
| Frequency | 50Hz |
| Prime Power | 200kW/250kVA |
| Standby Power | 220kW/275kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 2610 x 900 x 1750 |
| Gross Weight (KG) | 2000 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 1506A-E88TAG3 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder, Vertical in Line |
| Cycle | 4 Stroke |
| Displacement | 8.8 L |
| Bore x Stroke | 112 x 149 mm |
| Compression Ratio | 16.1:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCDI274K |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
