220kW 275kVA Diesel Generator, Cummins NTA855-G1A, 4 Stroke

Key Specifications / Features

Model No.: GGS-240403-DGS-09
Hits: 0

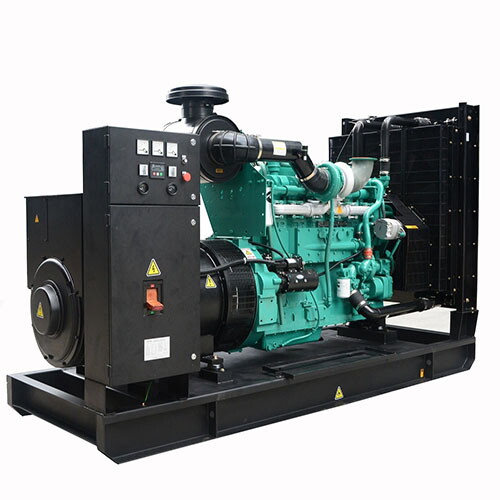

Introducing our advanced 4-stroke diesel generator, designed to deliver prime power of 220kW and 275kVA. This robust generator features a 6-cylinder Cummins NTA855-G1A engine paired with a Stamford HCI444D alternator, ensuring reliable and efficient performance for various applications.
Request a quote

Detail Information

Product Name: 220kW 275kVA Diesel Generator
Model: GGS-275-C
Frequency: 50Hz
Prime Power: 220kW, 275kVA
Standby Power: 240kW, 300kVA
Rated Voltage: 230V, 400V
Displacement: 14 L
Bore x Stroke: 140 x 152 mm
Compression Ratio: 14.5:1
Engine: Cummins NTA855-G1A, 4 Stroke, 6 Cylinder
Alternator: Stamford HCI444D, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Mechanical Governor

Technical Data
Generator Specification
Generator Model GGS-275-C
Frequency 50Hz
Prime Power 220kW/275kVA
Standby Power 240kW/300kVA
Rated Voltage 230V, 400V
Dimension (L x W x H) (mm) 2950 x 1100 x 1900
Gross Weight (KG) 3000
Engine Specification
Engine Brand Cummins
Engine Model NTA855-G1A
Cooling System Water Cooled
Aspiration Turbocharged & Aftercooled
Number of Cylinders 6 Cylinder, Vertical in Line
Cycle 4 Stroke
Displacement 14 L
Bore x Stroke 140 x 152 mm
Compression Ratio 14.5:1
Rated Speed 1500 RPM
Governor type Mechanical
Alternator Specification
Alternator Brand Stamford
Alternator Model HCI444D
Excitation system Brushless, Self-excited
Number of phase 3 Phase
Power Factor 0.8
Protection Grade IP23
Insulation Class H
