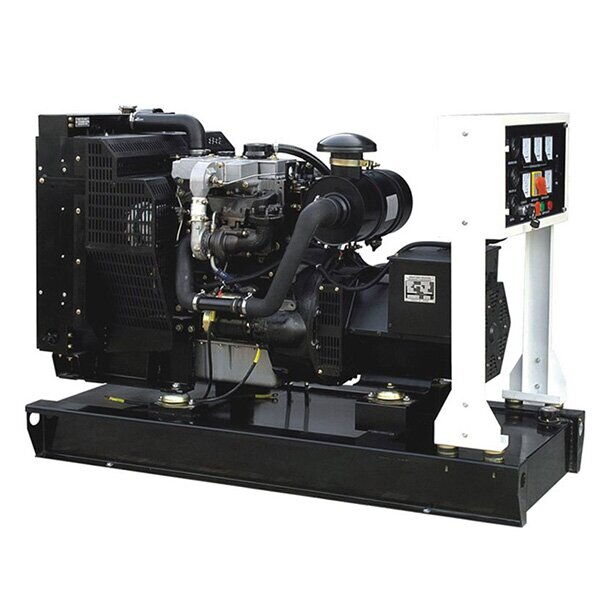

220kW Diesel Generator, 50Hz, Perkins 1606A-E93TAG4, 4 Stroke
Key Specifications / Features
Model no.: GGS-240325-DGS-07
Hits: 0
Introducing our 4-stroke diesel generator, powered by the 50Hz Perkins 1606A-E93TAG4 engine, offering a prime power output of 220 kW (275 kVA). Equipped with efficient water cooling, this generator ensures reliable performance in various applications. Trust in our generator for dependable power supply in diverse settings.
Request a quote
Tags
Detail Information
Product Name: 220kW Diesel Generator
Model: GGS-275-P
Prime Power: 220kW, 275kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Engine Model: Perkins 1606A-E93TAG4
Engine Type: 4 Stroke, 6 Cylinder Vertical in Line
Alternator Model: Stamford HCI444D
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-275-P |
| Frequency | 50Hz |
| Prime Power | 220kW/275kVA |
| Standby Power | 240kW/300kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 3500 × 1500 × 2400 |
| Gross Weight (KG) | 2200 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 1606A-E93TAG4 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged and Aftercooled |
| Number of Cylinders | 6 Cylinder Vertical in Line |
| Combustion System | Direct Injection |
| Cycle | 4 Stroke |
| Displacement | 9.3 L |
| Bore x Stroke | 117 x 146 mm |
| Compression Ratio | 17.2:1 |
| Rated Speed | 1500 RPM |
| Start Mode | Electric |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI444D |
| Excitation system | Single Bearing, Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
Perkins 1606A-E93TAG4 Diesel Engine
1. Dependable Power
The Perkins 1606A-E93TAG4 engine delivers impressive performance with up to 300 kVA standby power at 50Hz and 344 kVA at 60Hz. Its robust design features a 9.3-liter turbocharged engine with a hydraulic actuated unit injector fuel system, optimizing productivity through an exceptional power-to-weight ratio. This engine is engineered to handle varying fuel qualities, making it suitable for diverse markets and applications. Additionally, the 1606A operates efficiently in extreme conditions, with a temperature range of -40°C to 55°C.
2. Low Operating Costs
Extended Service Intervals: Standard service intervals are set at 500 hours, reducing maintenance frequency and costs.
Innovative Technology: Utilizes advanced technology to ensure low ownership costs, simple maintenance, and minimized downtime.
Common Components: The 1600 Series design features interchangeable parts, such as filters, cylinder heads, blocks, and pistons, simplifying parts inventory management.
Comprehensive Warranty: Enjoy peace of mind with a two-year warranty (up to 3,000 hours) and an extended three-year warranty on major engine components.
The Perkins 1606A-E93TAG4 is your solution for reliable and efficient power generation, designed to meet the demands of any environment while keeping operational costs low.
