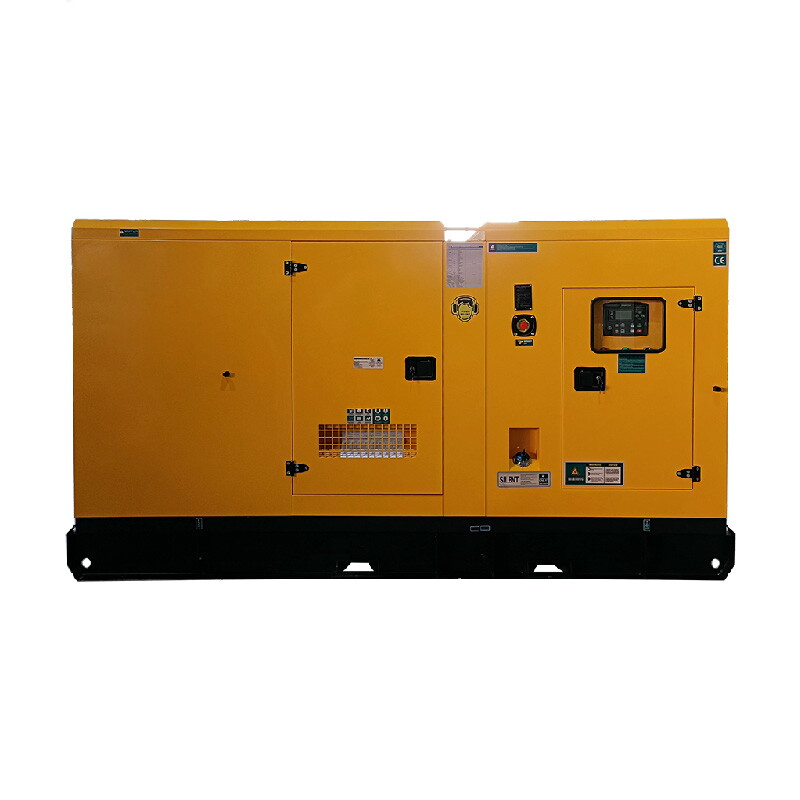

100kVA Diesel Generator, DCEC Engine, 4 Stroke, 6 Cylinder
Key Specifications / Features
Model no.: GGS-240320-DGS-06
Hits: 10
Introducing our DCEC Engine Powered Diesel Generator, delivering a prime power output of 80kW (100kVA). Equipped with a robust 4-stroke, 6-cylinder engine, this generator ensures reliable performance. Featuring a self-excited alternator, it guarantees efficient power generation for various applications. Trust in our generator for dependable electricity supply.
Request a quote
Tags
Detail Information
Product Name: 100kVA Diesel Generator
Model: GGS-100-DC
Frequency: 50Hz
Prime Power: 80kW, 100kVA
Rated Current: 158.8A
Rated Voltage: 400V, 230V
Cooling System: Water-cooled
Engine Model: DCEC 6BT5.9-G1
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Type: Brushless, Self-excited, AVR
Number of Phase: 3 Phase
Technical Data
| Generator Specification | |
| Generator Model | GGS-100-DC |
| Frequency | 50Hz |
| Prime Power | 80kW / 100kVA |
| Standby Power | 88kW / 110kVA |
| Rated Current | 158.8A |
| Rated Voltage | 400/230V |
| Dimension (L x W x H) (mm) | 2900 x 1100 x 1680 |
| Net Weight (KG) | 1550 |
| Engine Specification | |
| Engine Brand | DCEC |
| Engine Model | 6BT5.9-G1 |
| Prime Power | 86kW/115hp |
| Standby Power | 92kW/123hp |
| Type of Injection | Direct Injection |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 5.9 L |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1500 RPM |
| Starter System | 24V Electric System |
| Governor Type | Mechanical |
| Alternator Specification | |
| Alternator Type | Brushless |
| Excitation system | Self-excited |
| Voltage regulator | AVR |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Poles | 4 |
| Terminals | 12 |
| Protection Grade | IP23 |
| Insulation Class | H |
