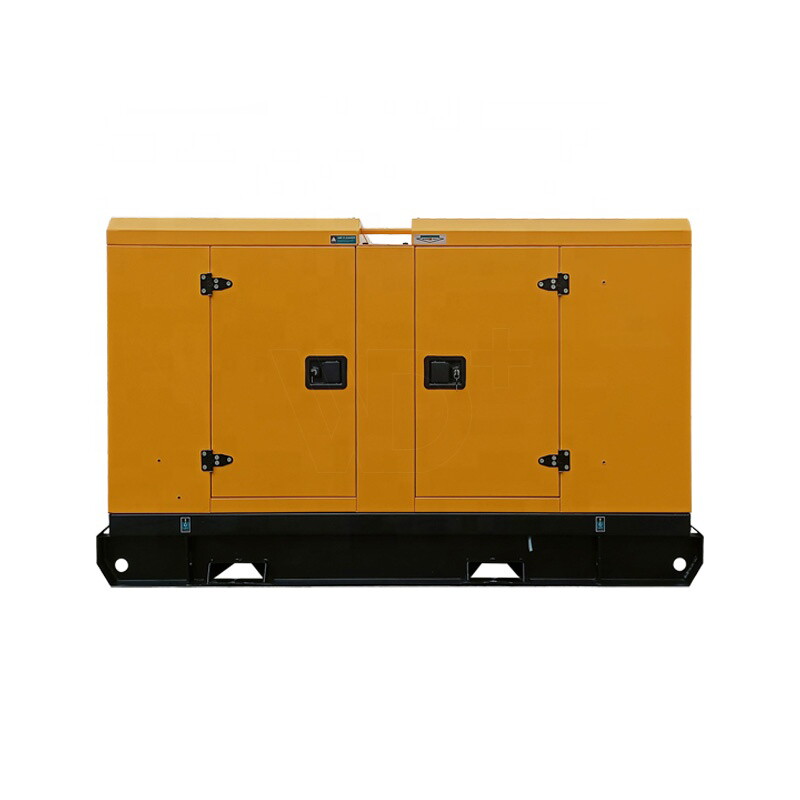

58kW Diesel Generator, 3 Phase, 50Hz, Fawde Engine, 4 Stroke
Key Specifications / Features
Model No.: GGS-240320-DGS-05
Hits: 3
Introducing our 58kW Diesel Generator, delivering 72.5kVA of power at 50Hz. Featuring a reliable Fawde engine, this generator operates with a current of 115.1A and a voltage of 400V and 230V. With a water cooling system and a 4-stroke, 4-cylinder engine, it ensures efficient and dependable performance. Trust in our generator for reliable power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 58kW Diesel Generator
Model: GGS-72.5-F
Frequency: 50Hz
Prime Power: 58kW, 72.5kVA
Rated Current: 115.1A
Rated Voltage: 400V, 230V
Cooling System: Water-cooled
Engine Model: Fawde 4110/125Z-09D
Engine Type: 4 Stroke, 4 Cylinder in Line
Alternator Type: Brushless, Self-excited, AVR
Number of Phase: 3 Phase
Technical Data
| Generator Specification | |
| Generator Model | GGS-72.5-F |
| Frequency | 50Hz |
| Prime Power | 58kW / 72.5kVA |
| Standby Power | 63.8kW / 80kVA |
| Rated Current | 115.1A |
| Rated Voltage | 400/230V |
| Dimension (L x W x H) (mm) | 2400 x 990 x 1250 |
| Net Weight (KG) | 1180 |
| Engine Specification | |
| Engine Brand | Fawde |
| Engine Model | 4110/125Z-09D |
| Prime Power | 65kW |
| Standby Power | 72kW |
| Type of Injection | Direct Injection |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 4 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 4.75 L |
| Bore x Stroke | 110 x 125 mm |
| Compression Ratio | 17.0:1 |
| Rated Speed | 1500 RPM |
| Starter System | 24V Electric System |
| Governor Type | Electronic |
| Alternator Specification | |
| Alternator Type | Brushless |
| Excitation system | Self-excited |
| Voltage regulator | AVR |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Poles | 4 |
| Terminals | 12 |
| Protection Grade | IP23 |
| Insulation Class | H |
