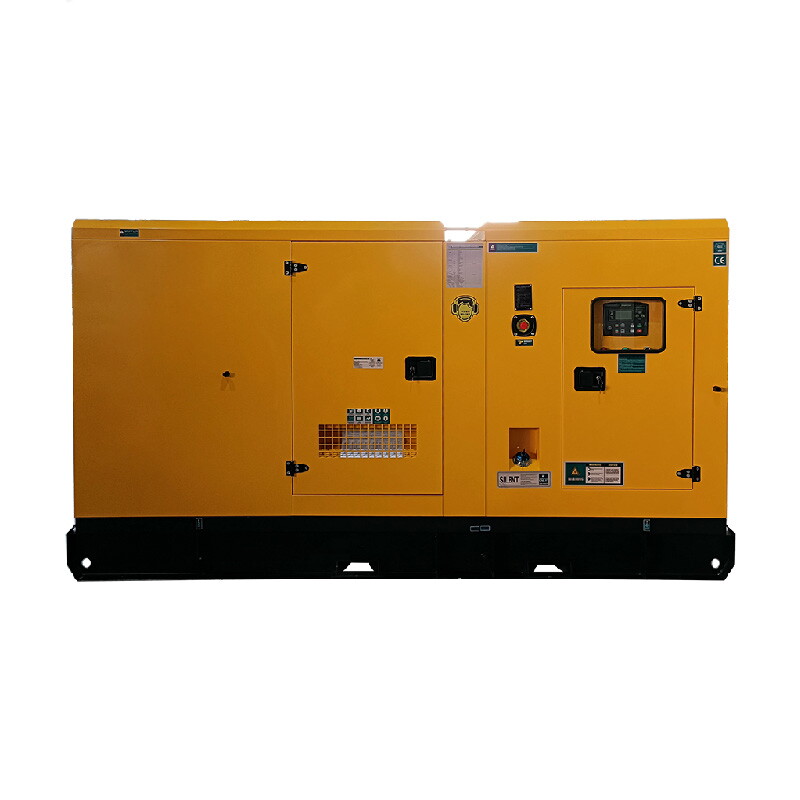

68kW 85kVA Diesel Generator, 50Hz, Fawde Engine, Water-cooled
Key Specifications / Features
Model no.: GGS-240320-DGS-04
Hits: 0
Introducing our Fawde Engine Driven Diesel Generator, delivering a prime power output of 68kW (85kVA) at 50Hz. Equipped with a brushless, self-excited alternator, this generator ensures efficient and reliable operation. Trust in our generator to provide dependable power supply for your applications.
Request a quote
Tags
Detail Information
Product Name: 68kW 85kVA Diesel Generator
Model: GGS-85-F
Frequency: 50Hz
Prime Power: 68kW, 85kVA
Rated Current: 135A
Rated Voltage: 400V, 230V
Cooling System: Water-cooled
Engine Model: Fawde CA4F2-12D
Engine Type: 4 Stroke, 4 Cylinder in Line
Alternator Type: Brushless, Self-excited, AVR
Number of Phase: 3 Phase
Technical Data
| Generator Specification | |
| Generator Model | GGS-85-F |
| Frequency | 50Hz |
| Prime Power | 68kW / 85kVA |
| Standby Power | 74.8kW / 93.5kVA |
| Rated Current | 135A |
| Rated Voltage | 400/230V |
| Dimension (L x W x H) (mm) | 2500 x 990 x 1300 |
| Net Weight (KG) | 1390 |
| Engine Specification | |
| Engine Brand | Fawde |
| Engine Model | CA4F2-12D |
| Prime Power | 84kW |
| Standby Power | 92kW |
| Type of Injection | Direct Injection |
| Cooling System | Water Cooled |
| Aspiration | Turbo & Intercooling |
| Number of Cylinders | 4 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 4.75 L |
| Bore x Stroke | 110 x 125 mm |
| Compression Ratio | 17.0:1 |
| Rated Speed | 1500 RPM |
| Starter System | 24V Electric System |
| Governor Type | Electronic |
| Alternator Specification | |
| Alternator Type | Brushless |
| Excitation system | Self-excited |
| Voltage regulator | AVR |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Poles | 4 |
| Terminals | 12 |
| Protection Grade | IP23 |
| Insulation Class | H |
