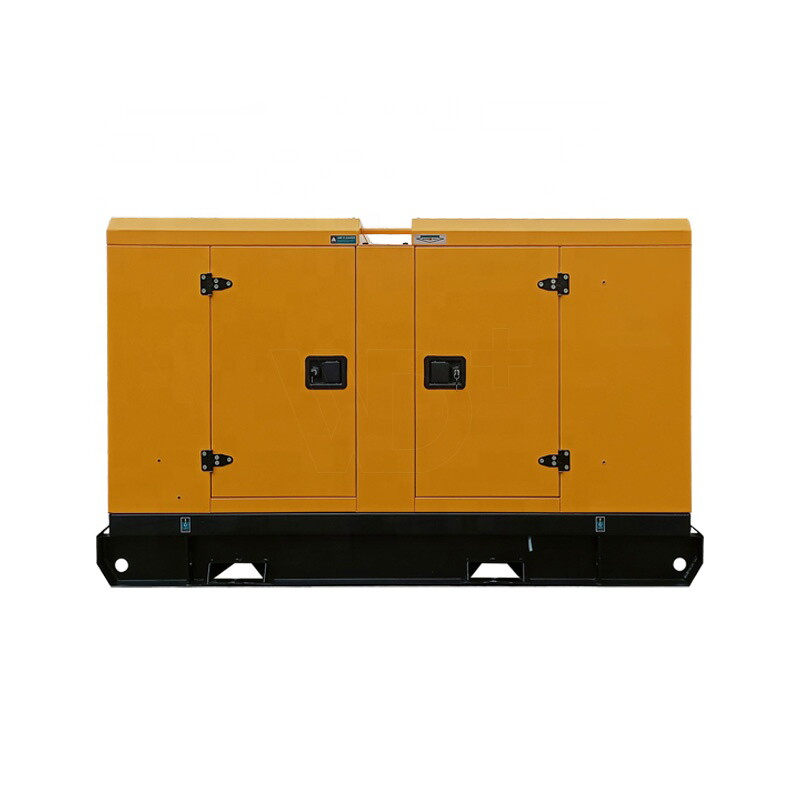

160kVA Diesel Generator, Fawde Engine, 3 Phase, Water-cooled
Key Specifications / Features
Model no.: GGS-240320-DGS-03
Hits: 0
Introducing our 160kVA Diesel Generator, offering 128kW of power at 50Hz. Featuring a robust Fawde engine with 6 cylinders in line, this generator ensures reliable performance. Water-cooled for efficiency, it operates at a voltage of 400V and 230V with a current of 254A. Trust in our generator for dependable three-phase power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 160kVA Diesel Generator
Model: GGS-160-F
Frequency: 50Hz
Prime Power: 128kW, 160kVA
Rated Current: 254A
Rated Voltage: 400V, 230V
Cooling System: Water-cooled
Engine Model: Fawde CA6DF2-19D
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Type: Brushless, Self-excited, AVR
Number of Phase: 3 Phase
Technical Data
| Generator Specification | |
| Generator Model | GGS-160-F |
| Frequency | 50Hz |
| Prime Power | 128kW / 160kVA |
| Standby Power | 140.1kW / 176kVA |
| Rated Current | 254A |
| Rated Voltage | 400/230V |
| Dimension (L x W x H) (mm) | 3400 x 1130 x 1800 |
| Net Weight (KG) | 2150 |
| Engine Specification | |
| Engine Brand | Fawde |
| Engine Model | CA6DF2-19D |
| Prime Power | 140kW |
| Standby Power | 154kW |
| Type of Injection | Direct Injection |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 7.13 L |
| Bore x Stroke | 110 x 125 mm |
| Compression Ratio | 17.0:1 |
| Rated Speed | 1500 RPM |
| Starter System | 24V Electric System |
| Governor Type | Electronic |
| Alternator Specification | |
| Alternator Type | Brushless |
| Excitation system | Self-excited |
| Voltage regulator | AVR |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Poles | 4 |
| Terminals | 12 |
| Protection Grade | IP23 |
| Insulation Class | H |
Standard 160kVA Diesel Generator Set Configuration
Fawde Engine: Coupled with a robust air filter, oil filter, fuel filter, and fuel/water separator for optimal performance.
Alternator Options: Equipped with standard brushless AC alternators from Stamford, Leroy Somer, Marathon, or Meccalte.
Large-Size Radiator: Enhanced cooling capacity for extended operational periods.
Heavy-Duty Anti-Vibration Pads: Reduces noise and protects components from wear.
Sturdy Steel Base Frame: Features an 8-hour continuous working fuel tank, ensuring extended operation without refueling.
Durable Canopy: At least 2mm thick with high-quality paint and powder coating for enhanced durability.
High-Quality Locks and Hinges: 180° revolvable doors with easy disassembly for convenient maintenance access.
Noise Reduction: Large-scale impedance muffler with high-quality soundproofing and insulation materials ensures low noise levels during operation.
Maintenance-Free Battery: Includes high-quality battery with connecting cables for reliable starting.
Electrical Components: Standard MCB or MCCB from Delixi, with optional alternatives from Chint or ABB.
Advanced Control Module: Standard Smartgen HGM6120N control module with AMF function, with optional upgrades available from Deepsea, ComAp, Datakom, or Deif.
Transport-Friendly Design: Standard battery charger and ATS connection port, along with 4 lift eyes, lift pockets on the base frame, and a lifting port on the canopy for easy transport.
Choose the Fawde-powered genset for a powerful, efficient, and versatile energy solution tailored to your operational needs.
