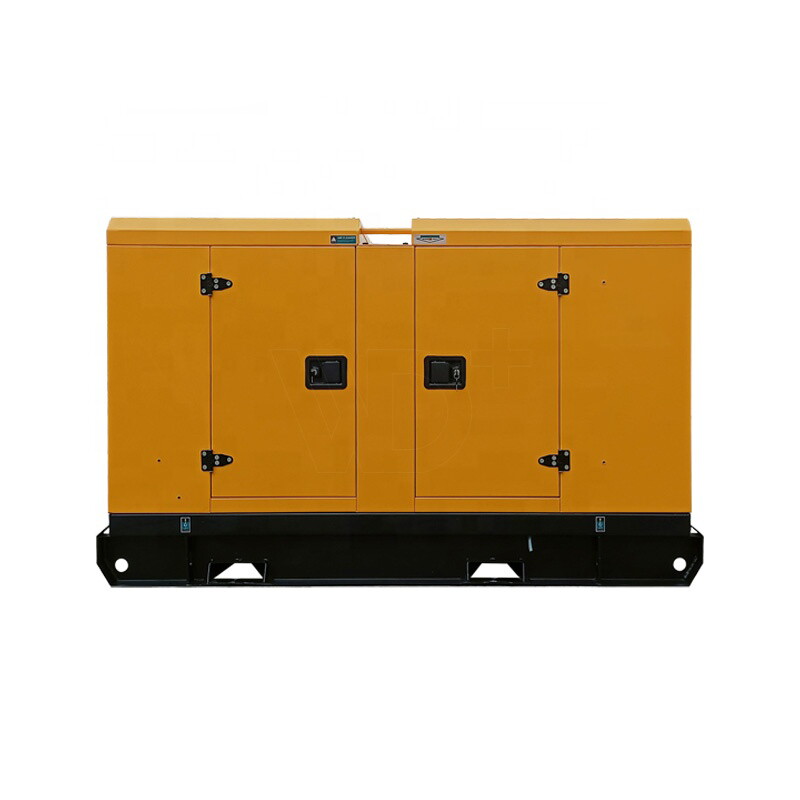

6 Cylinder Diesel Generator, 144kW 180kVA, 50Hz, Water-cooled
Key Specifications / Features
Model no.: GGS-240320-DGS-02
hits: 0
Introducing our 6 Cylinder Diesel Generator, delivering prime power output of 144kW (180kVA) at 50Hz. Powered by a reliable 4-stroke Fawde engine, this generator ensures efficient operation. With a water-cooled system, it maintains optimal performance even in demanding conditions. Trust in our generator for dependable power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 6 Cylinder Diesel Generator
Model: GGS-180-F
Frequency: 50Hz
Prime Power: 144kW, 180kVA
Rated Current: 285.8A
Rated Voltage: 400V, 230V
Cooling System: Water-cooled
Engine Model: Fawde CA6DL1-24D
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Type: Brushless, Self-excited, AVR
Number of Phase: 3 Phase
Technical Data
| Generator Specification | |
| Generator Model | GGS-180-F |
| Frequency | 50Hz |
| Prime Power | 144kW / 180kVA |
| Standby Power | 158.4kW / 198kVA |
| Rated Current | 285.8A |
| Rated Voltage | 400/230V |
| Dimension (L x W x H) (mm) | 3700 x 1130 x 2000 |
| Net Weight (KG) | 2470 |
| Engine Specification | |
| Engine Brand | Fawde |
| Engine Model | CA6DL1-24D |
| Prime Power | 176kW |
| Standby Power | 194kW |
| Type of Injection | Direct Injection |
| Cooling System | Water Cooled |
| Aspiration | Turbo & Intercooling |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 7.7 L |
| Bore x Stroke | 110 x 135 mm |
| Compression Ratio | 17.5:1 |
| Rated Speed | 1500 RPM |
| Starter System | 24V Electric System |
| Governor Type | Electronic |
| Alternator Specification | |
| Alternator Type | Brushless |
| Excitation system | Self-excited |
| Voltage regulator | AVR |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Poles | 4 |
| Terminals | 12 |
| Protection Grade | IP23 |
| Insulation Class | H |
