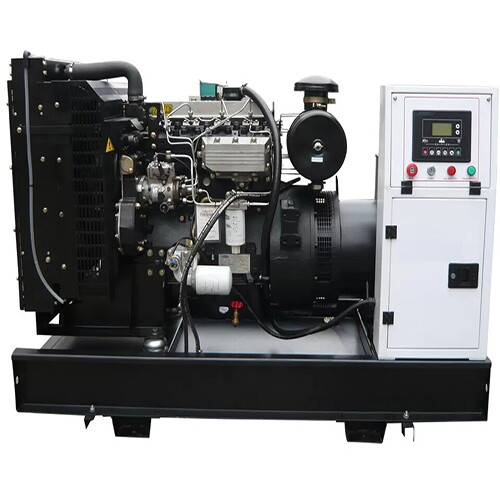

180kVA Diesel Generator, Perkins 1106A-70TAG3, Water Cooled

Key Specifications / Features

Model no.: GGS-240403-DGS-05
hits: 2
Explore our robust 6-cylinder diesel generator delivering a prime power output of 144kW and 180kVA. Featuring the Perkins 1106A-70TAG3 engine renowned for its reliability, and paired with a Stamford UCI274G alternator, this generator ensures consistent performance for your power requirements.
Request a quote

Detail Information


Product Name: 180kVA Diesel Generator
Model: GGS-180-P
Frequency: 50Hz
Prime Power: 144kW, 180kVA
Standby Power: 160kW, 200kVA
Rated Voltage: 230V, 400V
Displacement: 7.01 L
Bore x Stroke: 105 x 135 mm
Compression Ratio: 16.1:1
Engine: Perkins 1106A-70TAG3, 4 Stroke, 6 Cylinder, Vertical in Line
Alternator: Stamford UCI274G, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Mechanical Governor

Technical Data

Generator Specification
Generator Model GGS-180-P
Frequency 50Hz
Prime Power 144kW/180kVA
Standby Power 160kW/200kVA
Rated Voltage 230V, 400V
Dimension (L x W x H) (mm) 2400 x 760 x 1600
Gross Weight (KG) 1800
Engine Specification
Engine Brand Perkins
Engine Model 1106A-70TAG3
Cooling System Water Cooled
Aspiration Turbocharged
Number of Cylinders 6 Cylinder, Vertical in Line
Cycle 4 Stroke
Displacement 7.01 L
Bore x Stroke 105 x 135 mm
Compression Ratio 16.1:1
Rated Speed 1500 RPM
Governor type Mechanical
Alternator Specification
Alternator Brand Stamford
Alternator Model UCI274G
Excitation system Brushless, Self-excited
Number of phase 3 Phase
Power Factor 0.8
Protection Grade IP23
Insulation Class H
