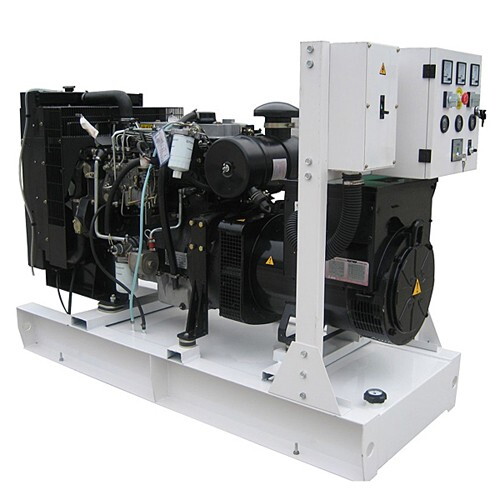

100kW Diesel Generator, Perkins 1106A-70TG1, 50Hz, 6 Cylinder
Key Specifications / Features
Model No.: GGS-240403-DGS-04
Hits: 14
Introducing our versatile 6-cylinder diesel generator, operating at 50Hz with a prime power capacity of 100kW and 125kVA. Powered by the reliable 4-stroke Perkins 1106A-70TG1 engine, this generator ensures dependable performance in various applications. Equipped with a Stamford UC274ES alternator and a water cooling system, it offers enhanced efficiency and durability for your power needs.
Request a quote
Tags
Detail Information
Product Name: 100kW Diesel Generator
Model: GGS-125-P
Frequency: 50Hz
Prime Power: 100kW, 125kVA
Standby Power: 110kW, 138kVA
Rated Voltage: 230V, 400V
Displacement: 7.01 L
Bore x Stroke: 105 x 135 mm
Compression Ratio: 18.2:1
Engine: Perkins 1106A-70TG1, 4 Stroke, 6 Cylinder, Vertical in Line
Alternator: Stamford UC274ES, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Mechanical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-125-P |
| Frequency | 50Hz |
| Prime Power | 100kW/125kVA |
| Standby Power | 110kW/138kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 2260 x 760 x 1570 |
| Gross Weight (KG) | 1500 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 1106A-70TG1 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder, Vertical in Line |
| Cycle | 4 Stroke |
| Displacement | 7.01 L |
| Bore x Stroke | 105 x 135 mm |
| Compression Ratio | 18.2:1 |
| Rated Speed | 1500 RPM |
| Governor type | Mechanical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UC274ES |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
