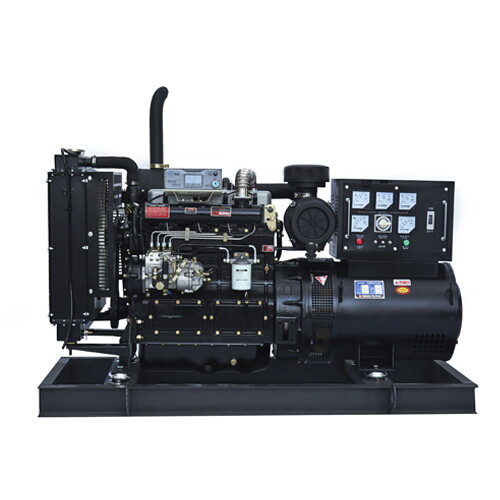

72kW Diesel Generator, 50Hz, Perkins 1104C-44TAG2, 4 Cylinder
Key Specifications / Features
Model no.: GGS-240403-DGS-03
Hits: 1
Introducing our reliable 4-stroke diesel generator, driven by the robust 4-cylinder Perkins 1104C-44TAG2 engine. With a prime power output of 72kW and 90kVA, this generator ensures dependable performance for your power needs. Additionally, it features an efficient water cooling system to maintain optimal operating temperatures, enhancing its longevity and reliability.
Request a quote
Tags
Detail Information
Product Name: 72kW Diesel Generator
Model: GGS-90-P
Frequency: 50Hz
Prime Power: 72kW, 90kVA
Standby Power: 80kW, 100kVA
Rated Voltage: 230V, 400V
Displacement: 4.4 L
Bore x Stroke: 105 x 127 mm
Compression Ratio: 18.23:1
Engine: Perkins 1104C-44TAG2, 4 Stroke, 4 Cylinder, Vertical in Line
Alternator: Stamford UCI274C, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-90-P |
| Frequency | 50Hz |
| Prime Power | 72kW/90kVA |
| Standby Power | 80kW/100kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 1810 x 750 x 1400 |
| Gross Weight (KG) | 1250 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 1104C-44TAG2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 4 Cylinder, Vertical in Line |
| Cycle | 4 Stroke |
| Displacement | 4.4 L |
| Bore x Stroke | 105 x 127 mm |
| Compression Ratio | 18.23:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI274C |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
