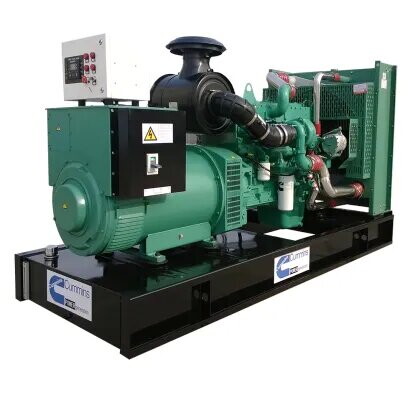

160kW 200kVA Diesel Generator, Cummins 6CTAA8.3-G2, 4 Stroke
Key Specifications / Features
Model no.: GGS-240403-DGS-06
Hits: 2
Introducing our 50Hz diesel generator, offering a robust power solution with a prime power output of 160kW and 200kVA. Driven by the dependable 4-stroke, 6-cylinder Cummins 6CTAA8.3-G2 engine and equipped with a Stamford UCI274H alternator, this generator ensures reliable performance for your three-phase power needs. With an electrical governor system, it provides precise control and stability, making it ideal for various applications.
Request a quote
Tags
Detail Information
Product Name: 160kW 200kVA Diesel Generator
Model: GGS-200-C
Frequency: 50Hz
Prime Power: 160kW, 200kVA
Standby Power: 176kW, 220kVA
Rated Voltage: 230V, 400V
Displacement: 8.3 L
Bore x Stroke: 114 x 135 mm
Compression Ratio: 16.6:1
Engine: Cummins 6CTAA8.3-G2, 4 Stroke, 6 Cylinder
Alternator: Stamford UCI274H, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-200-C |
| Frequency | 50Hz |
| Prime Power | 160kW/200kVA |
| Standby Power | 176kW/220kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 2570 x 1000 x 1650 |
| Gross Weight (KG) | 2000 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6CTAA8.3-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder |
| Cycle | 4 Stroke |
| Displacement | 8.3 L |
| Bore x Stroke | 114 x 135 mm |
| Compression Ratio | 16.6:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI274H |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
