200kVA Diesel Generator, Three Phase, Perkins 1106D-E70TAG4
Key Specifications / Features
Model No.: GGS-240402-DGS-14
Hits: 15

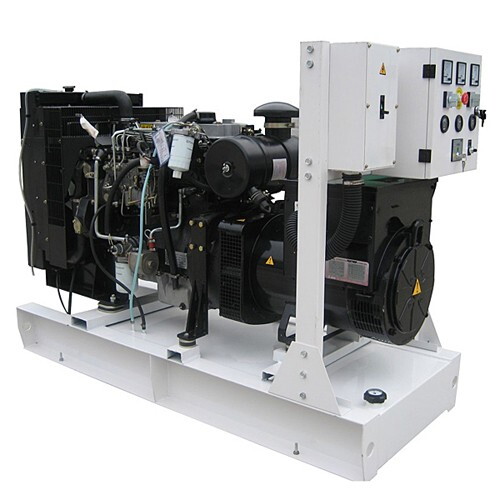

Producing a dependable power supply, our diesel generator boasts a capacity of 160kW and 200kVA, operating at 60Hz with a 3-phase output. Driven by a robust 6-cylinder Perkins 1106D-E70TAG4 engine and paired with a Stamford UCI274G alternator, it features an electronic governor for precise control and efficiency.
Request a quote
Tags
Detail Information
Product Name: 200kVA Diesel Generator
Model: GGS-200-P
Frequency: 60Hz
Prime Power: 160kW, 200kVA
Standby Power: 176kW, 220kVA
Rated Voltage: 127V, 220V
Displacement: 7.01 L
Bore x Stroke: 105 x 135 mm
Compression Ratio: 16.8:1
Engine: Perkins 1106D-E70TAG4, 4 Stroke, 6 Cylinder Vertical in Line
Alternator: Stamford UCI274G, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-200-P |
| Frequency | 60Hz |
| Prime Power | 160kW/200kVA |
| Standby Power | 176kW/220kVA |
| Rated Voltage | 127V, 220V |
| Dimension (L x W x H) (mm) | 2400 x 760 x 1600 |
| Weight | 1800 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 1106D-E70TAG4 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder Vertical in Line |
| Cycle | 4 Stroke |
| Displacement | 7.01 L |
| Bore x Stroke | 105 x 135 mm |
| Compression Ratio | 16.8:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI274G |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
