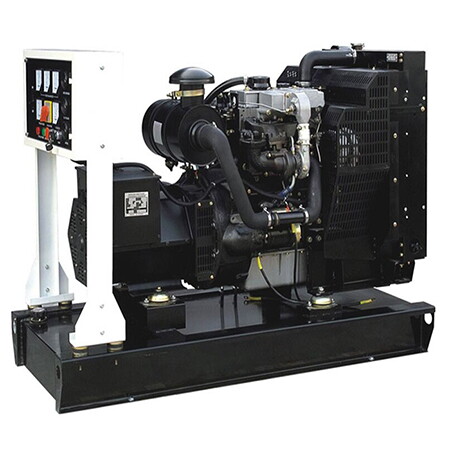

52kW Diesel Generator, Perkins Powered, Stamford Alternator

Key Specifications / Features

Model No.: GGS-240321-DGS-02
Hits: 0
Introducing our 3 Phase Perkins Powered Diesel Generator, featuring a Stamford alternator and offering a prime power output of 52kW (65kVA). This generator is cooled through a water cooling system, ensuring optimal performance and reliability. Trust in our generator for efficient and dependable power supply in various applications.
Request a quote

Detail Information


Product Name: 52kW Diesel Generator
Model: GGS-65-P
Prime Power: 52kW, 65kVA
Frequency: 50Hz
Rated Voltage: 400V
Engine Model: Perkins 1104A-44TG1
Engine Type: 4 Stroke, 4 Cylinder in Line
Alternator Model: Stamford UCI224F
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled

Technical Data

Generator Specification
Generator Model GGS-65-P
Frequency 50Hz
Prime Power 52kW / 65kVA
Standby Power 58kW / 73kVA
Rated Voltage 400V (Available with custom requirements)
Dimension (L x W x H) (mm) 1810 × 1400 × 730
Net Weight (KG) 900
Engine Specification
Engine Brand Perkins
Engine Model 1104A-44TG1
Prime Power 59.6kW
Standby Power 65.6kW
Cooling System Water Cooled
Aspiration Turbocharged
Number of Cylinders 4 Cylinder in Line
Cycle 4 Stroke
Displacement 4.4 L
Bore x Stroke 105 x 127 mm
Compression Ratio 17.25:1
Rated Speed 1500 RPM
Alternator Specification
Alternator Brand Stamford
Alternator Model UCI224F
Excitation system Brushless, Self-excited
Number of phase 3 Phase
Power Factor 0.8
Protection Grade IP23
Insulation Class H
