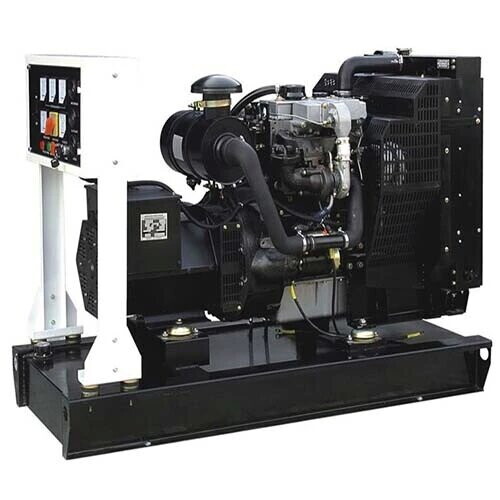

69kVA Diesel Generator, Perkins 1103A-33TG2, Stamford UCI224E
Key Specifications / Features
Model No.: GGS-240402-DGS-15
Hits: 14
Introducing our 3-phase diesel generator powered by a reliable Perkins 1103A-33TG2 engine, operating at 60Hz. Paired with a Stamford UCI224E alternator, this generator delivers a prime power output of 55kW and 69kVA, ensuring dependable performance for your power needs.
Request a quote
Tags
Detail Information
Product Name: 69kVA Diesel Generator
Model: GGS-69-P
Frequency: 60Hz
Prime Power: 55kW, 69kVA
Standby Power: 61kW, 76kVA
Rated Voltage: 127V, 220V
Displacement: 3.3 L
Bore x Stroke: 105 x 127 mm
Compression Ratio: 17.25:1
Engine: Perkins 1103A-33TG2, 4 Stroke, 3 Cylinder Vertical in Line
Alternator: Stamford UCI224E, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Mechanical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-69-P |
| Frequency | 60Hz |
| Prime Power | 55kW/69kVA |
| Standby Power | 61kW/76kVA |
| Rated Voltage | 127V, 220V |
| Dimension (L x W x H) (mm) | 1740 x 750 x 1180 |
| Weight | 870 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 1103A-33TG2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 3 Cylinder Vertical in Line |
| Cycle | 4 Stroke |
| Displacement | 3.3 L |
| Bore x Stroke | 105 x 127 mm |
| Compression Ratio | 17.25:1 |
| Rated Speed | 1800 RPM |
| Governor type | Mechanical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI224E |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
